Understanding the Column Type

Upstream traceability columns use the itemLink or multiItemLink column type to display work items that are linked to each risk item through Siemens Polarion ALM work item link relationships. The column bindings property specifies the Polarion field that stores the link reference, and the typeProperties section defines the linked item’s work item type, link role, and related behavior.
diagram

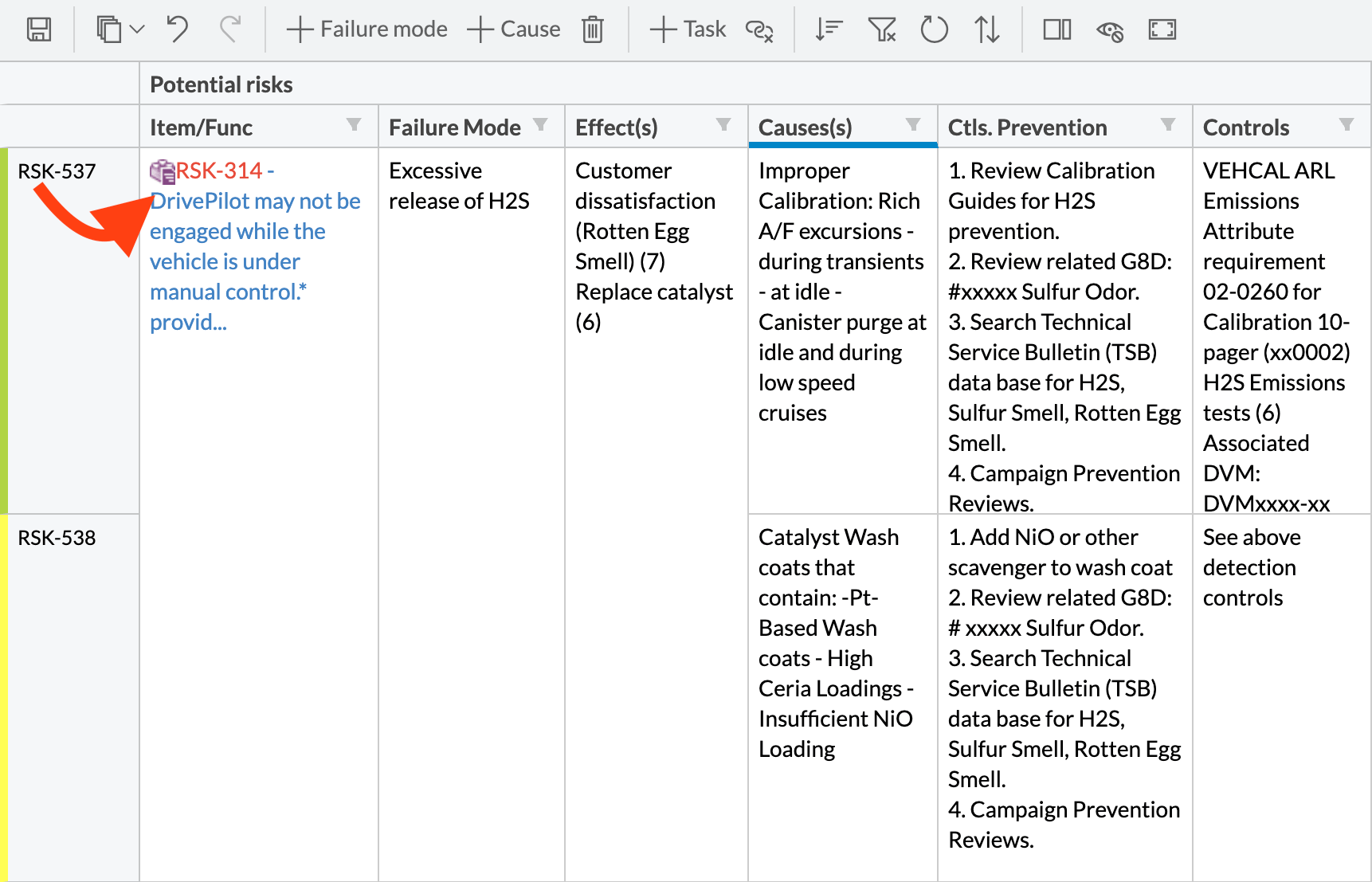

An upstream column showing the work items linked to each Risk item

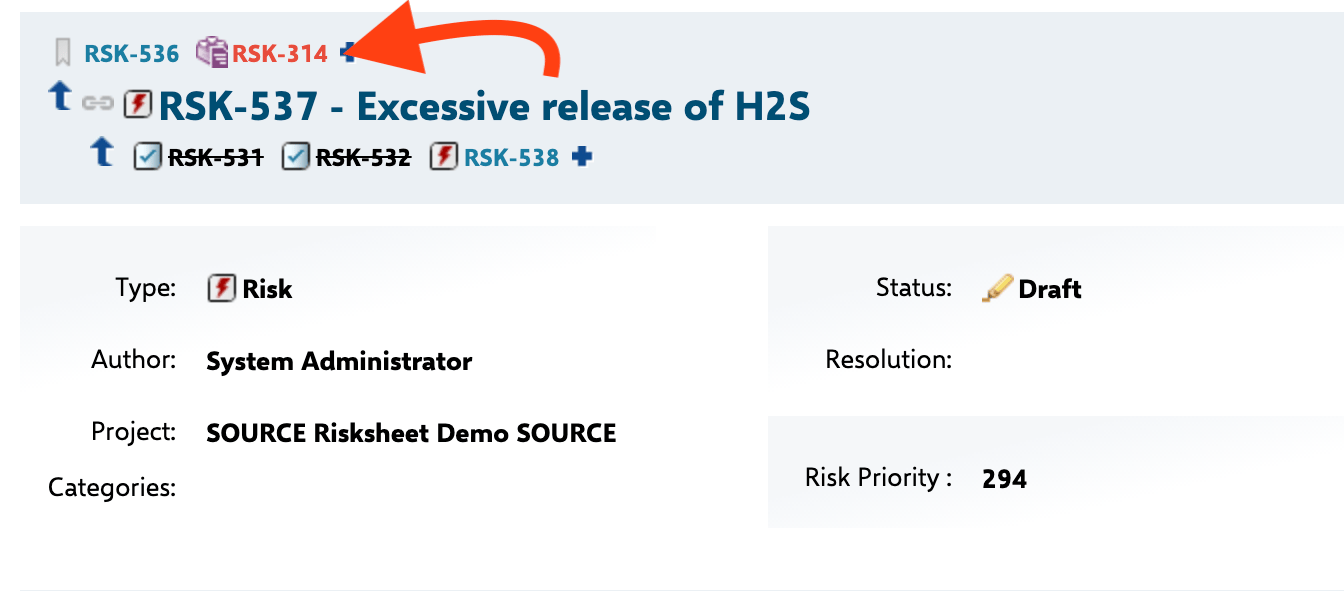

The upstream traceability column displaying items linked to the Risk items
Before configuring the column, determine:
  • The work item type of the upstream item (for example, requirement, systemRequirement, hazard). Risksheet supports one or more types in the same column.
  • The link role connecting the risk item to the upstream item (for example, mitigates, verifies, relatesTo).
You can find these values in your Polarion project configuration under Administration > Work Items > Link Roles.

​
The Six typeProperties Sub-Properties

The typeProperties block on an itemLink or multiItemLink column accepts the following sub-properties. The two highlighted in bold are required for any upstream column; the rest control optional behavior. Two additional sub-properties extend typeProperties for cross-document and cross-project scenarios and are covered in later steps: document (scope autocomplete to a specific LiveDoc) and project (load items from another project). Item creation is controlled by createInCurrentDocument and the top-level canCreate column property.

​
Step 2: Add a Basic Upstream Column

Open the sheet configuration (the risksheet.json document attachment, editable in YAML since v25.5.0) and add an itemLink column. Set bindings to the Polarion field that stores the link, and define the linked work item via linkTypes and linkRole:
This configuration displays a single linked system requirement for each risk item at visual level 1 of the hierarchy. Note that the column level property is 1-indexed — level: 1 corresponds to the first entry in the top-level levels array.
Every column id in the sheet configuration must be unique across the entire file. Duplicating an ID (for example, using id: sysReq on two different columns) will break the sheet structure silently, causing columns to not render or data to be misaligned.

​
Step 3: Configure Multi-Item Upstream Columns

When a risk item can be linked to multiple upstream items (for example, multiple requirements tracing to one hazard), use the multiItemLink type instead:
The multiItemLink column displays all matching linked items within a single cell, allowing users to add and remove links to multiple upstream items.

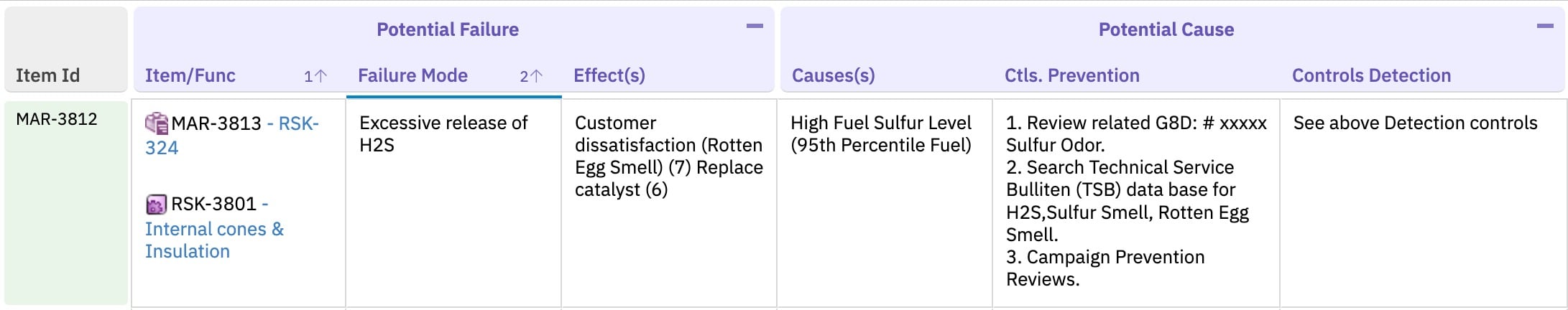

An upstream column displaying multiple linked work items for a single Risk item
You can also accept several work item types in the same column by providing a comma-separated string in linkTypes:

​
Step 4: Control Item Creation from the Column

By default, upstream columns allow users to both select existing items and create new ones directly from the cell editor. To restrict the column to selection only (preventing creation of new upstream items), set the column-level canCreate to false:
The queryFactory, createInCurrentDocument and document configuration controlling whether and where new upstream items can be created
Set canCreate to false on upstream columns where the linked items should be pre-created in the tracker or in a separate document. This prevents users from accidentally creating upstream items from within the risksheet, keeping item creation workflows centralized. The cell remains active for linking and unlinking existing items.
Item creation can also be disabled globally for downstream task items via dataTypes.task.canCreate: false. The two canCreate switches operate independently.

​
Step 5: Make Upstream Columns Editable

By default, upstream item columns are read-only. To allow users to edit field values of the linked upstream item directly from the grid, explicitly set readOnly to false:

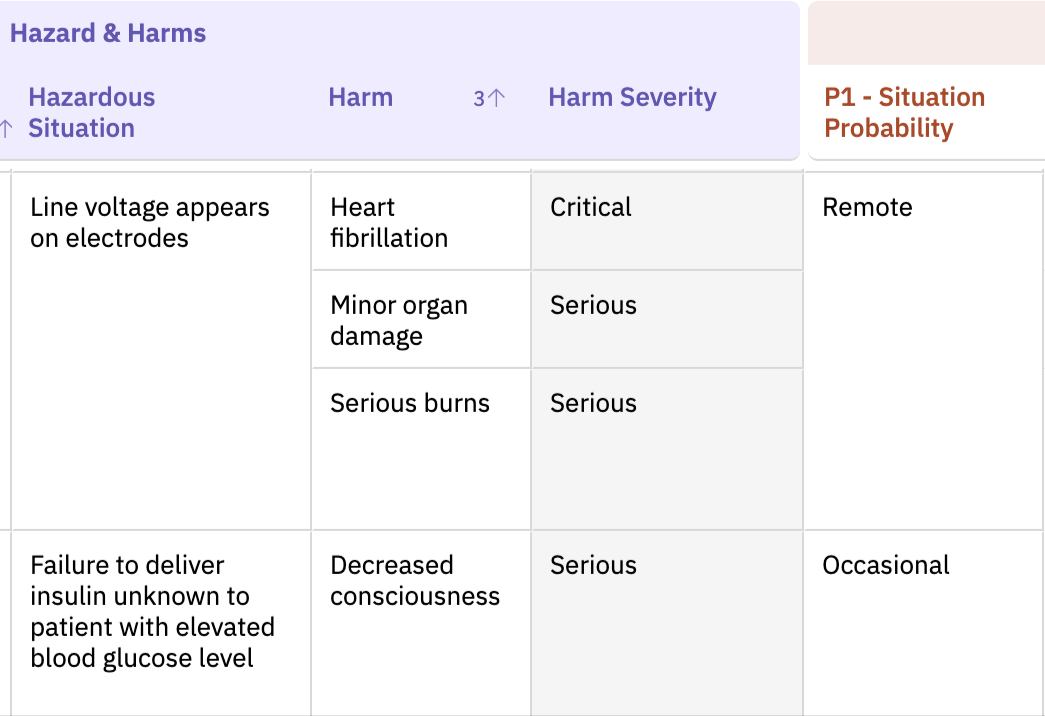

Upstream sub-columns shown as read-only by default before readOnly is set to false
All upstream item columns default to readOnly: true. If you add an upstream column and users report they cannot edit it, add readOnly: false to the column definition. This is a frequent point of confusion during initial setup. The global behavior is also governed by the nextedy.risksheet.upstreamSubColumnsReadonly project property (default true).

​
Step 6: Specify the Enum Type for Upstream Columns

When displaying enum fields from upstream items, you must explicitly set the column type to enum (or multiEnum). While the type property is optional for main row item columns (it can be auto-detected from the Polarion field), it is mandatory for upstream and downstream linked item columns:
The enum values themselves are defined in Polarion (Administration > Enumerations) and bound to the work item field — Risksheet does not declare enum values in the sheet configuration.

​
Step 7: Configure Cross-Project Upstream Items

To display upstream items from a different Polarion project, add the project parameter to typeProperties. The value is a space-separated string of project IDs, and the special variable $projectId resolves to the current project at runtime:
This enables cross-project traceability, where risk items in one project reference requirements or functions defined in another. The example above lets autocomplete pull items from both the current project and SystemProject.
The project parameter in typeProperties only works for directly linked items. If upstream items are linked through intermediary work items in another project (indirect links), the standard cross-project column configuration will not resolve them. Consider using serverRender with Velocity scripts for indirect cross-project link traversal.

​
Step 8: Scope Autocomplete to a Library Document

For shared upstream catalogs (harms libraries, requirements libraries, function catalogs), restrict the autocomplete to a specific LiveDoc using typeProperties.document:
This is the recommended pattern for upstream traceability to centrally curated reference libraries — users can only link to items that already exist in the named document.

​
Step 9: Configure the createInCurrentDocument Parameter

When upstream item creation is enabled (the default), the createInCurrentDocument parameter controls where newly created items are stored:
When createInCurrentDocument is true, new upstream items are created within the current LiveDoc. When false or omitted, new items are created in the Polarion tracker (outside any document).

​
Step 10: Build Upstream Chains with upstreamChains

When two upstream item types are both linked to the risk item and you want to automatically create links between them, use the nextedy.risksheet.upstreamChains project property. This is configured at the project level, not in the sheet configuration. The format is: fromType-linkRole-toType For example, to automatically link a Hazardous Situation to a Sequence of Events when both are linked to the same risk record:
Multiple chains can be specified with commas:
The upstreamChains property only creates links between upstream items. It never deletes existing links. If you remove an upstream item from a risk record, the chain link between the two upstream items remains intact and must be manually removed if needed.
Some upstream linkages in DFMEA templates work automatically without explicit upstreamChains configuration. If you are using a Nextedy-provided DFMEA template, test your link behavior before adding chain configuration.

​
Step 11: Dynamically Filter Suggestions with queryFactory

The queryFactory sub-property in typeProperties references a named function in the top-level queryFactories section. That function receives an info object with the current row’s context and returns a Lucene query string used to filter the autocomplete suggestions. This is how you implement dependent upstream filtering — for example, restricting Hazardous Situation suggestions to those already linked to the selected Sequence of Events:

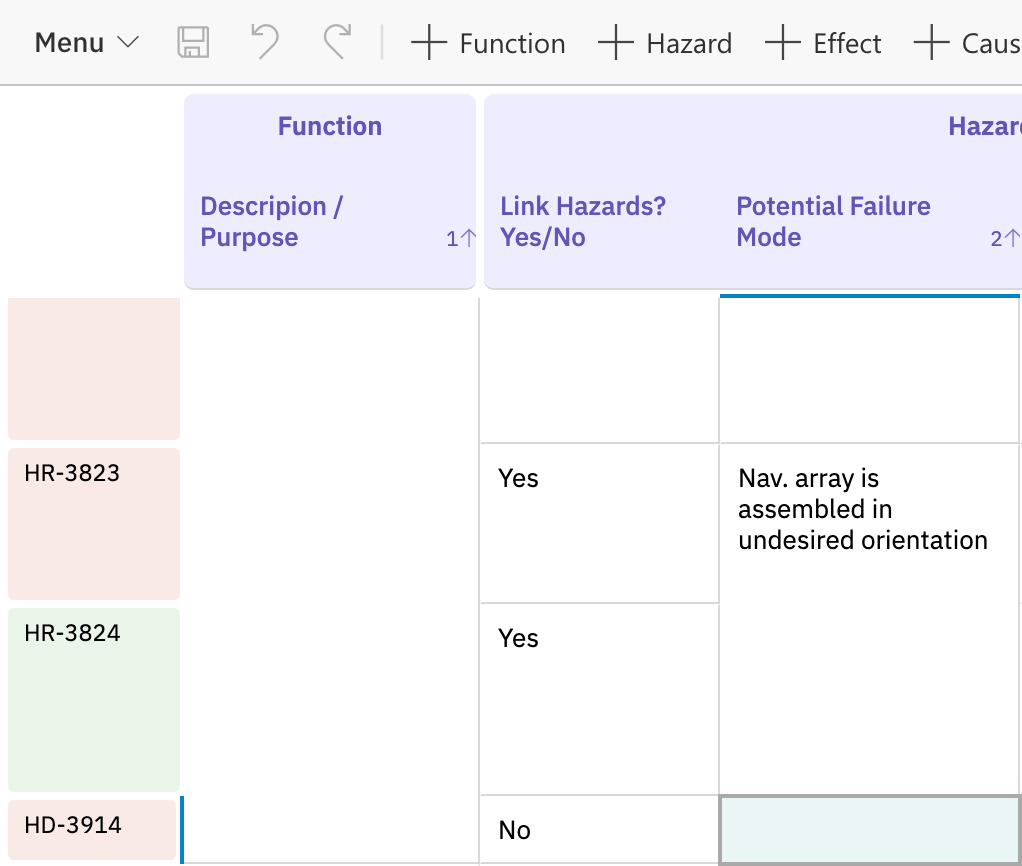

Using cell decorators to enable or disable linking upstream items to the Risk based on a specific field value
The function body can perform any logic you need, including reading values from the top panel via jQuery selectors. Pair queryFactory with canCreate: false so users can only pick from the filtered set rather than create unrelated new items. See Use Query Factory for the full reference.

​
Verification

After saving the sheet configuration and refreshing the page, you should see:
  • The upstream column header displayed in the grid.
  • Linked upstream items showing their ID or title in each cell.
  • The cell editor allowing you to search for and select existing upstream items.
  • New item creation available, unless canCreate: false is set on the column or globally.
If the column appears but shows no data, verify that the linkRole and linkTypes values in typeProperties match the Polarion project’s link role and work item type definitions exactly.

​
