Highlight Work Items by Rules

How the default highlight works

Since version 25.10.0, Nextedy PLANNINGBOARD automatically highlights work items that are placed in a Plan whose end date falls after the work item’s own Due Date field. These cards receive a red frame to signal the scheduling conflict. The comparison logic is:

Planningboard reads the Due Date field of each work item.
It compares that date against the end date of the Plan column the card occupies.
If the work item’s due date is earlier than the plan’s end date, the card is highlighted in red.

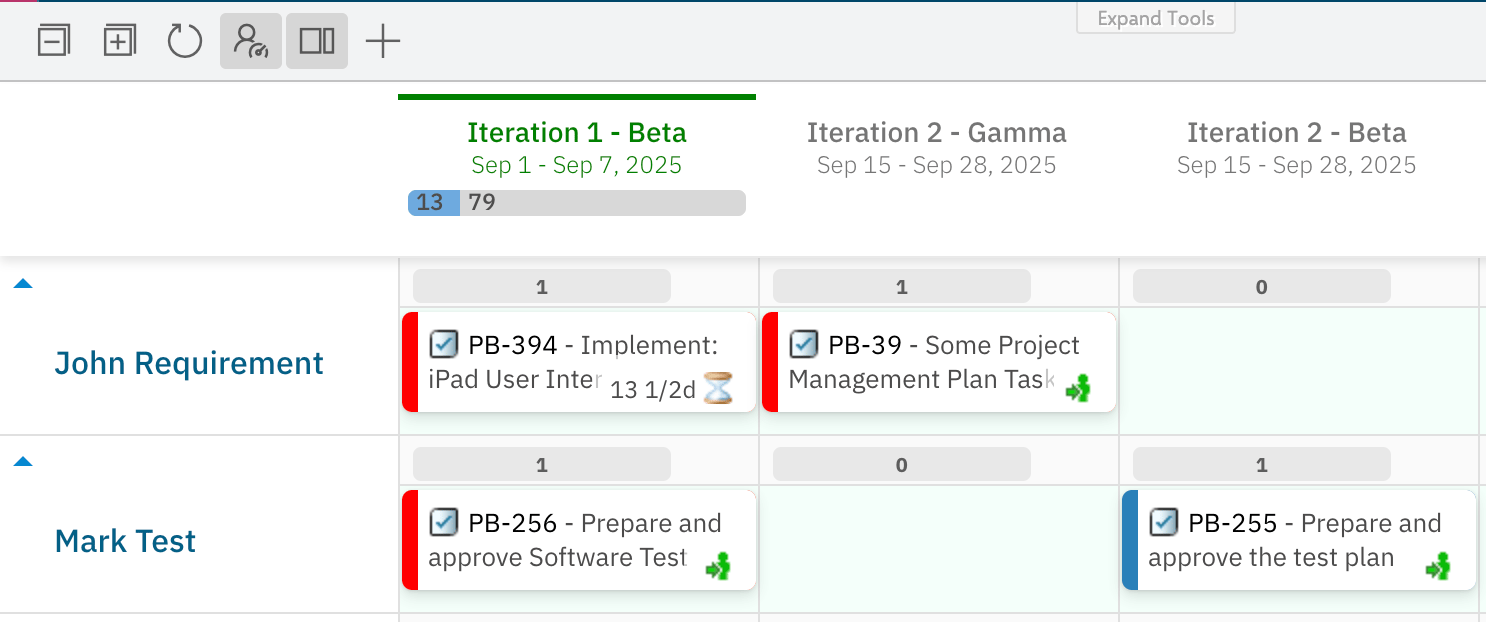

Work item highlighted in red because its due date precedes the plan end date

For example: a Plan ends on September 7, but a work item’s due date is August 5. Because August 5 is earlier than September 7, Planningboard flags the card automatically.

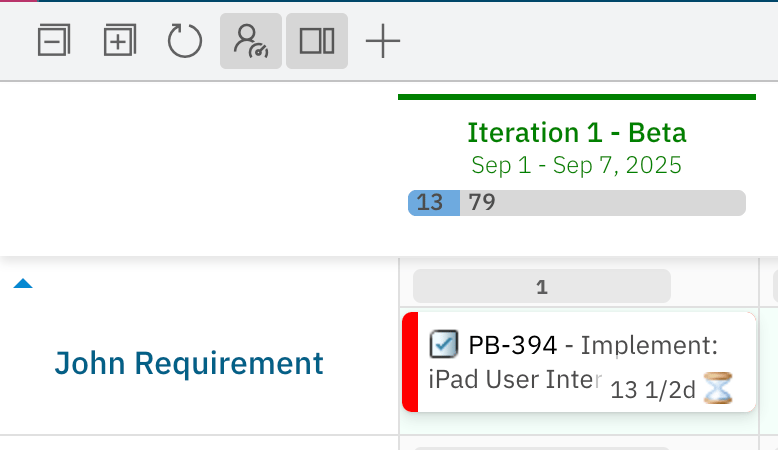

Detail showing due date vs plan end date comparison

No widget parameter is required to enable this — the behavior is on by default from version 25.10.0 onward.

Customize the highlight with an Item Script

The default red frame can be replaced or extended using an Item Script. The script runs for each card and lets you change the frame color, background color, or both. Open the Polarion page that contains your Planningboard widget. Enter edit mode and open the widget configuration panel.

Step 2 — Navigate to the Item Script field

Go to Widget Parameters → Advanced → Item Script.

Step 3 — Enter your highlighting script

Paste a script that checks the due date condition and sets the visual properties you want. The example below changes the default red frame to orange and adds a soft orange card background:

if (wi.getDueDate() != null && cli.planEndDate != null
        && wi.getDueDate().getDate().getTime() < cli.planEndDate.getTime()) {
    cli.color = "orange";
    cli.cardColor = "#f3e2c2";
}

Step 4 — Save and reload the board

Save the widget parameters and reload the page. Cards meeting the condition will now display with the orange frame and background instead of the default red frame.

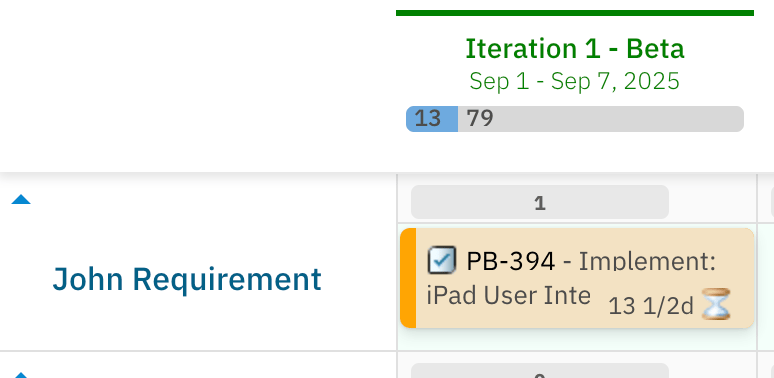

Card displayed with orange frame and background after custom script

Item Script properties for highlighting

The following properties are available when writing a highlight rule in the Item Script:

Property	Type	Purpose
`wi.getDueDate()`	Method	Returns the work item’s Due Date field value, or `null` if unset
`cli.planEndDate`	Date	The end date of the Plan column where the card is placed
`cli.color`	String	Sets the frame (border) color of the card (CSS color value or named color)
`cli.cardColor`	String	Sets the background color of the card (CSS color value or hex code)

Always guard against null before comparing dates. If wi.getDueDate() is null (the work item has no due date set) or cli.planEndDate is null, the comparison will throw an error and the script will fail silently for that card.

Example: color by priority

You can extend the same pattern to apply different highlights based on other work item fields. For example, to use a stronger color for high-priority overdue items:

if (wi.getDueDate() != null && cli.planEndDate != null
        && wi.getDueDate().getDate().getTime() < cli.planEndDate.getTime()) {
    if (wi.getPriority() != null && wi.getPriority().getId() === "high") {
        cli.color = "red";
        cli.cardColor = "#fce4e4";
    } else {
        cli.color = "orange";
        cli.cardColor = "#f3e2c2";
    }
}

A single Item Script can apply multiple highlight rules sequentially. Each condition block can set cli.color and cli.cardColor independently. The last block to match wins, so order conditions from lowest to highest priority.

Diagram: how highlighting is evaluated

For each card on the board
         |
         v
  wi.getDueDate() present?
    |              |
   No             Yes
    |              |
  (no highlight)   v
             cli.planEndDate present?
               |              |
              No             Yes
               |              |
         (no highlight)        v
                        dueDate < planEndDate?
                          |              |
                         No             Yes
                          |              |
                    (no highlight)   Apply cli.color
                                     and cli.cardColor
                                     from Item Script
                                     (default: red frame)

Pitfalls and limitations

The automatic red-frame highlight for overdue items was introduced in version 25.10.0. On earlier versions, no default highlight appears. To check your version, go to Administration > Nextedy PLANNINGBOARD and look at the installed version number.

A syntax error or uncaught exception in the Item Script will prevent the highlighting logic from running for affected cards. If your customized highlight stops appearing, check the browser console for script errors. See Script Errors for diagnosis steps.

Planningboard card coloring (including highlights set via cli.color and cli.cardColor) is driven by Item Scripts, not by custom enumeration fields. Unlike Scrumboard, Planningboard does not support custom-enum-based card coloring out of the box. If you need color to reflect an enumeration value, read the field in the Item Script and map it to a color manually.

Verification

After saving the widget parameters and reloading the board, scan for cards that are placed in Plans whose end date is later than each card’s due date. Those cards should display with the frame color defined in your script (or the default red if no script is set). Cards without a due date, or cards placed in Plans that end before their due date, should remain unhighlighted.
