Since v25.5.0, the configuration editor supports YAML editing with syntax highlighting and validation. All examples in this reference use YAML; the underlying file remains JSON in Polarion storage.

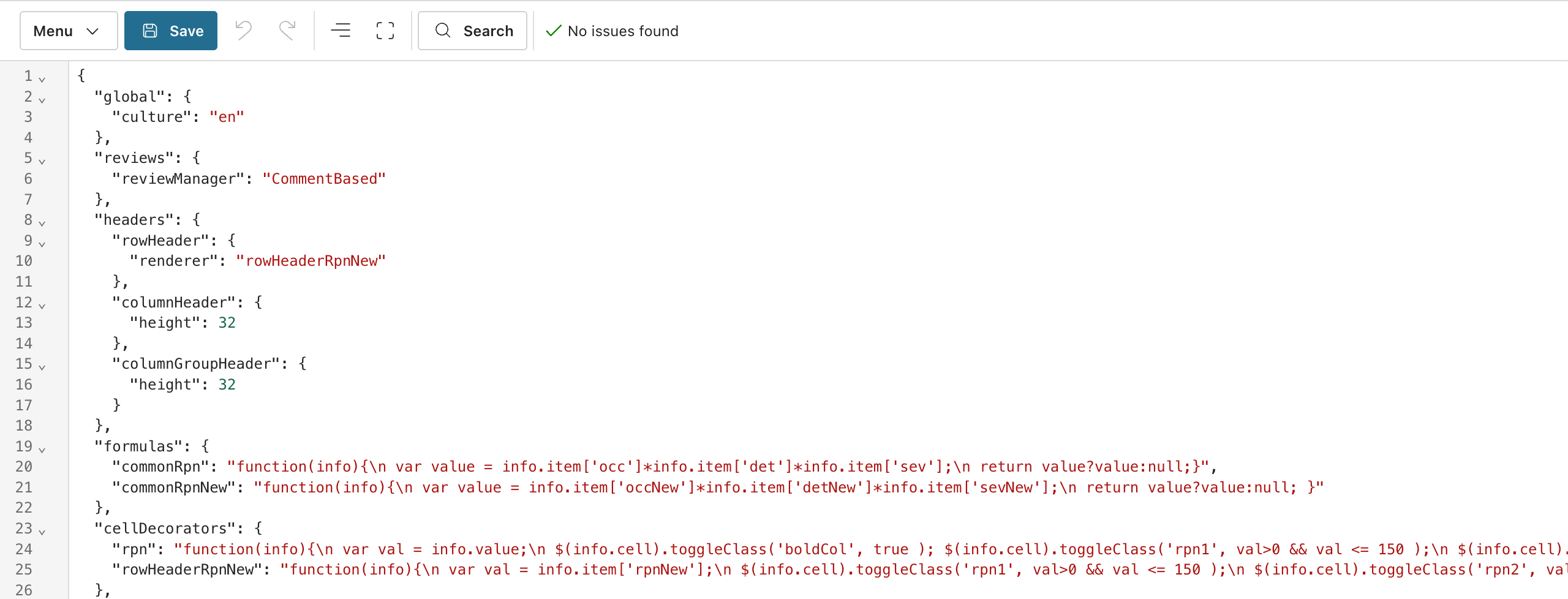

Overview of the customizable sheet configuration settings: formatting, styling, formulas, sorting, and column behavior

File Location

Location	Description
LiveDoc document attachment	Attached directly to the Polarion LiveDoc as the sheet configuration.
Document template	Defined in a Polarion document template. Applied to all documents created from the template.
Global template path	Configured via Risksheet project properties. Default path: `Risks/Risk Specification`.

Use template-based configuration for consistent settings across multiple documents. Override specific properties at the document level when individual documents need customization. See Template Path Configuration and Document Configuration Override.

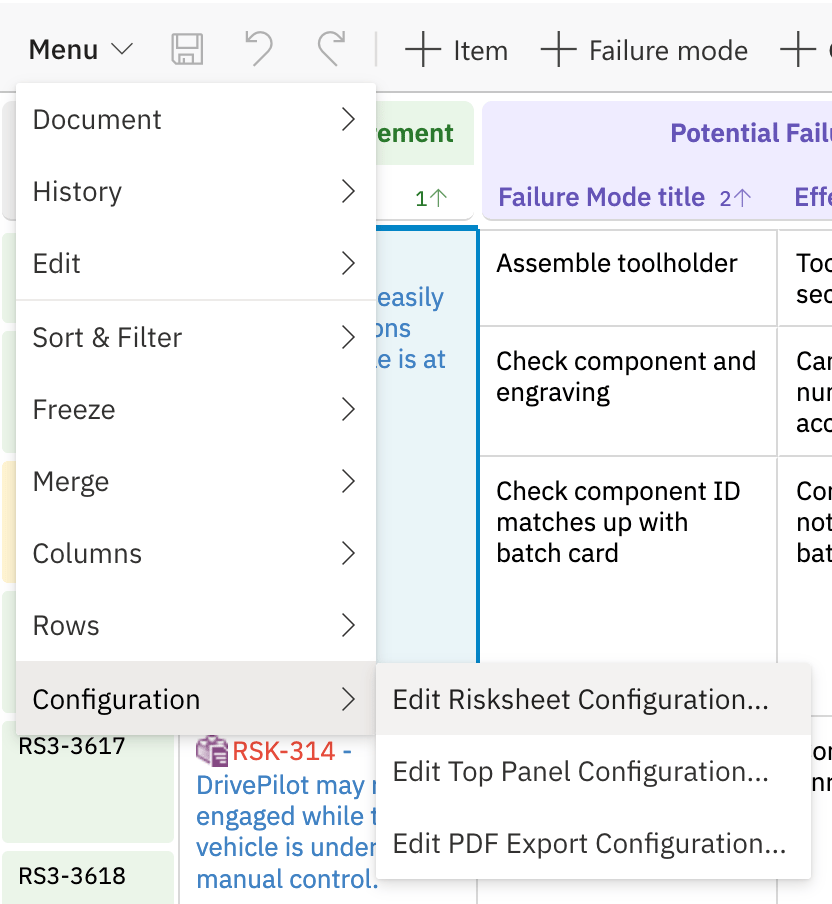

Opening the built-in sheet configuration via Menu > Configuration > Edit Risksheet Configuration

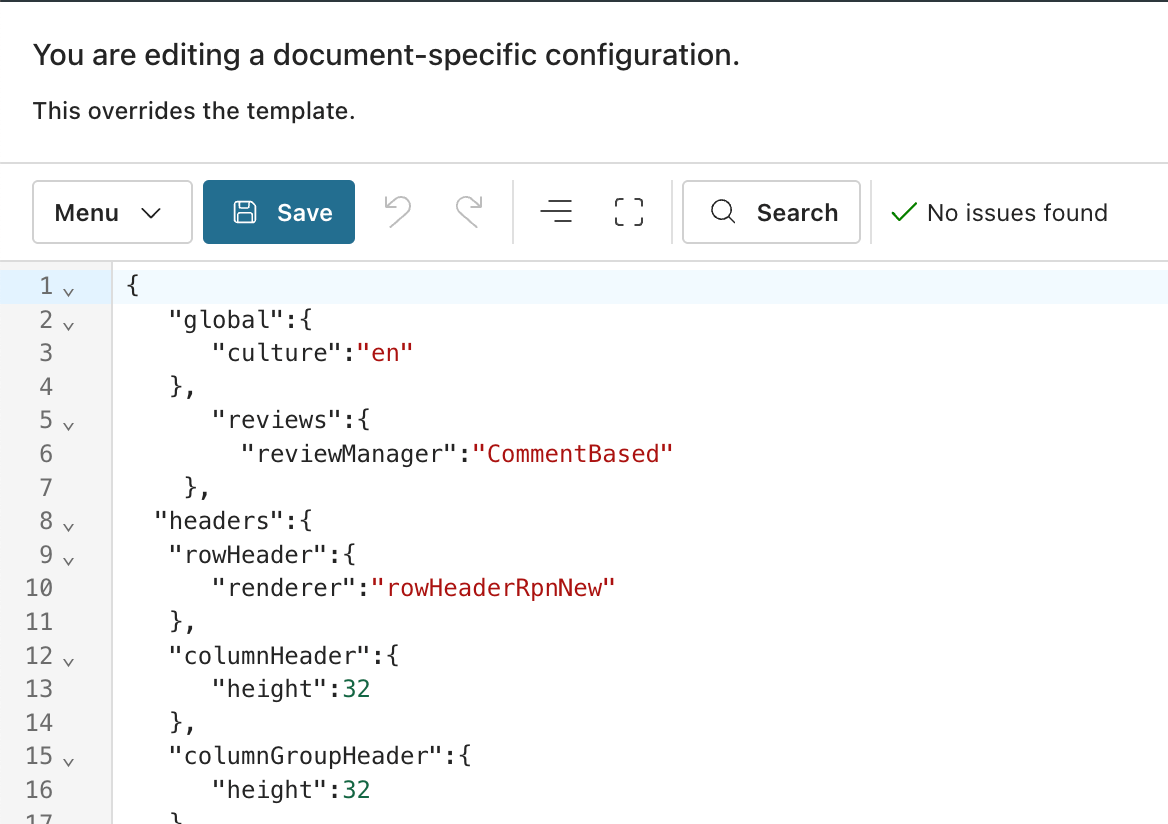

The configuration editor opening in a new tab with YAML mode, syntax highlighting, and history

See Configuration Examples for annotated, end-to-end sheet configurations from real-world TARA and FMEA projects.

Do not create a sheet configuration from scratch. When you create a sheet, pick the closest solution template for your industry/methodology, understand its configuration, and modify it to match your process. The functional safety template is a good entry point for evaluation.

Top-Level Structure

The sheet configuration has these verified top-level sections:

global: {}
reviews: {}
headers: {}
queryFactories: {}
formulas: {}
cellDecorators: {}
styles: {}
columns: []
levels: []
dataTypes: {}
sortBy: []
views: []

Top-Level Properties

Property	Type	Description
`global`	object	Global settings: culture/locale, help URL, refresh behavior, menu organization.
`columns`	array	Column definitions for the grid. Each entry defines a column’s binding, type, header, and behavior.
`levels`	array	Visual hierarchy definitions for cell merging (e.g., item / failure mode / cause).
`dataTypes`	object	Risk and task work item type definitions.
`formulas`	object	Named JavaScript formula functions referenced by column `formula` properties.
`styles`	object	Named CSS class definitions referenced by `cellDecorators`.
`cellDecorators`	object	Named JavaScript functions that apply conditional CSS classes to cells.
`headers`	object	Row header and column header configuration (heights, renderers).
`reviews`	object	Review workflow configuration.
`sortBy`	array	Default sort order as an array of column ID strings. Prefix a column ID with `~` for descending order (for example, `~severity` sorts severity high-to-low).
`views`	array	Saved column visibility presets for staged or role-based workflows.
`queryFactories`	object	Named Lucene query functions for `itemLink` autocomplete filtering.

Rating scales (severity, occurrence, detection) and enumerations are not declared inside the sheet configuration. They are defined as Polarion enumerations under Administration > Enumerations. A custom field on the work item type binds to the enumeration, and the sheet configuration column references it via type: rating:<enumId> or type: enum:<enumId> together with bindings: <fieldId>. The server loads the enumeration values automatically.Dependent enumerations (where the available options of one enum depend on the value of another) are a column-level feature available since v25.3.1, not a top-level configuration section.

columns

Each entry in the columns array defines one grid column.

Column Properties

Property	Type	Description
`id`	string	Unique column identifier. Referenced by `cellDecorators`, `views`, `sortBy.`
`bindings`	string	Polarion work item field ID that this column reads from and writes to. Supports `fieldId`, `linkedItem.fieldId`, and `linkedItem.$item` patterns.
`header`	string	Display text in the column header.
`type`	string	Column data type (e.g., `string`, `enum:<enumId>`, `rating:<enumId>`, `itemLink`, `taskLink`). See Data Types.
`level`	number	Visual hierarchy level for cell merging. 1-indexed (`level: 1` maps to `levels[0]`). An unleveled risk-item column defaults to level 1 and merges into the first level. Downstream/task columns are a separate axis and are not leveled.
`width`	number	Column width in pixels.
`minWidth`	number	Minimum column width in pixels for resizing.
`readOnly`	boolean	Prevents cell editing. Automatically `true` for `formula`, `serverRender`, reference columns, and system fields.
`canCreate`	boolean	For `itemLink`, `multiItemLink`, and `taskLink` columns: controls whether users can create new linked items.
`filterable`	boolean	Enables column-level filtering.
`formula`	string	Named formula reference from the `formulas` section. When set, column becomes read-only.
`serverRender`	string	Velocity template for server-side rendering. When set, column becomes read-only.
`cellRenderer`	string	Name of a function defined in `cellDecorators` that customizes cell rendering.
`headerGroup`	string	Header group name for multi-level column headers.
`collapseTo`	boolean	When `true`, this column remains visible when its header group is collapsed.
`headerTooltip`	string	Tooltip text displayed when hovering over the column header.
`headerCss`	string	CSS class name applied to the column header.
`headerGroupCss`	string	CSS class name applied to the header group row.
`cellCss`	string	CSS class name applied to cells in this column.
`format`	string	Display format string (date format, number format).
`typeProperties`	object	Type-specific properties (e.g., for `itemLink` columns). See typeProperties.

typeProperties for itemLink Columns

For itemLink and multiItemLink columns, typeProperties defines the link semantics and autocomplete behavior:

Property	Type	Description
`linkRole`	string	Link role name (Polarion link role ID).
`linkTypes`	string	Comma-separated work item type IDs that the column can link to.
`linkDirection`	string	Use `"back"` for reverse-direction link traversal.
`backLink`	boolean	Enables back-link rendering.
`itemTemplate`	string	Velocity template for custom item display in the dropdown.
`queryFactory`	string	Reference to a named function in `queryFactories` for dynamic autocomplete filtering.
`createInCurrentDocument`	boolean	When `true`, new items are created in the current document.
`document`	string	Restricts autocomplete to items from a specific LiveDoc (upstream “library” pattern).
`project`	string	Cross-project item loading. Supports `$projectId` (current project) and space-separated project IDs.

Column Example

columns:
  - id: systemItemId
    bindings: systemItemId
    header: ID
    type: string
    readOnly: true
    level: 1
    width: 80
  - id: title
    bindings: title
    header: Failure Mode Description
    type: string
    level: 1
    width: 250
    headerTooltip: Describe the potential failure mode
  - id: severity
    bindings: severity
    header: S
    type: rating:severityEnum
    level: 1
    width: 60
    headerGroup: Initial Risk Assessment
    headerTooltip: Severity rating
  - id: rpn
    bindings: rpn
    header: RPN
    formula: commonRpn
    cellRenderer: rpn
    level: 1
    width: 70
    headerGroup: Initial Risk Assessment
    collapseTo: true
  - id: measure
    bindings: measure
    header: Mitigation
    type: taskLink
    canCreate: true

levels

Defines the visual hierarchy for cell merging. The number of levels entries determines how many visual tiers the grid renders; the underlying data model still has only two entity types (risk items and task items).

Property	Type	Description
`name`	string	Display name in the navigation/zoom menu (e.g., “Item”, “Failure mode”).
`controlColumn`	string	Used as the grouping key for cell merging. Consecutive rows with the same value in this column are merged.
`zoomColumn`	string	Defines in which column a highlighted cell will appear.
`showInMenu`	boolean	Controls level visibility in the navigation menu. Default: `true`.

levels:
  - name: Item
    controlColumn: item
    zoomColumn: item
  - name: Failure mode
    controlColumn: failureMode
    zoomColumn: failureMode
  - name: Cause
    controlColumn: systemItemId
    zoomColumn: causes

In this DFMEA example, all rows are the same Polarion work item type. The three visual levels are created purely through cell merging: the “Item” column values merge when consecutive rows share the same item, and “Failure mode” values merge when they share the same failure mode.

dataTypes

Defines the work item types that participate in the sheet. The data model always has exactly two entities: risk (the row work item) and task (downstream linked items). The names are conventions only — any Polarion work item types can be used.

dataTypes.risk Properties

Property	Type	Default	Description
`type`	string	None (required)	Polarion work item type ID. Supports expression evaluation for dynamic resolution.
`role`	string	None	Link role for relationships.
`removeStrategy`	string	`delete`	Removal strategy: `delete`, `rejected`, `recycle_bin`, or `hide` (v23.7.7+).
`rejectedAction`	string	`reject`	Workflow action for rejection. Must be available from the work item’s current state.
`rejectedStatus`	string	`rejected`	Target status after rejection.
`rejectedResolution`	string	`invalid`	Resolution value after rejection.
`showInMenu`	boolean	`true`	Controls toolbar menu visibility for item creation.
`document`	string	None	Restricts loaded items to a specific LiveDoc path.
`createInDocument`	string	None	Target document path (`folder/documentId`) for new items. Without this, new items go to the project tracker.

dataTypes.task Properties

Property	Type	Description
`type`	string	Task work item type ID. Since v25.3.1, comma-separated for multiple types.
`role`	string	Link role connecting risk to task (e.g., `mitigates`).
`name`	string	Display name in the toolbar/menus (e.g., “Task”, “Safety Requirement”).
`zoomColumn`	string	Column for zoom navigation after task creation.
`document`	string	Restricts tasks to a specific LiveDoc path.
`createInCurrentDocument`	boolean	When `true`, new tasks are created in the current document.
`createInDocument`	string	Target document path (`folder/documentId`) for new tasks (v24.8.1+).
`project`	string	Single project ID for task items.
`projects`	array	Array of project IDs for multi-project task loading (v23.7.0+).
`query`	string	Lucene query for additional task filtering.
`canCreate`	boolean	Global switch for all task creation. When `false`, users can only link to existing tasks.
`linkToRisksheet`	boolean	When `true`, the task link column becomes a clickable hyperlink to the downstream risksheet document defined by `document`. Enables subsheet navigation.
`showInMenu`	boolean	Controls menu visibility for task creation.

dataTypes Example

dataTypes:
  risk:
    type: failureMode
    role: relates_to
    removeStrategy: delete
    rejectedAction: reject
    rejectedStatus: rejected
    rejectedResolution: invalid
    showInMenu: true
  task:
    type: mitigationTask
    role: mitigates
    name: Mitigation
    zoomColumn: measureTitle
    createInDocument: Risks/Tasks

Use the folder/documentId path format. Example: Risks/Tasks creates items in the Tasks document within the Risks folder. Without createInDocument, new items go to the project tracker instead of a document.

Dynamic Type Resolution

Data type properties support dynamic resolution from Risksheet Configuration Properties using expression evaluation:

dataTypes:
  risk:
    type: $config.getRisksheetProjectProperties().getProperties().getProperty('riskType', 'failureMode')
    role: $config.getRisksheetProjectProperties().getProperties().getProperty('riskRole', 'relates_to')

This pattern makes configurations portable across projects by reading project-specific values with fallback defaults.

headers

Property	Type	Default	Description
`headers.rowHeader.renderer`	string	None	Named cell decorator function for row header rendering.
`headers.columnHeader.height`	number	`32`	Column header height in pixels. Increase for multi-line header text.
`headers.columnGroupHeader.height`	number	`32`	Column group header height in pixels.

headers:
  rowHeader:
    renderer: rowHeaderRpnNew
  columnHeader:
    height: 48
  columnGroupHeader:
    height: 32

formulas

Named JavaScript functions for calculated columns. Each formula receives an info object with info.item containing the current row’s field values.

formulas:
  commonRpn: "function(info){ var value = info.item['occ']*info.item['det']*info.item['sev']; return value?value:null; }"
  commonRpnNew: "function(info){ var value = info.item['occNew']*info.item['detNew']*info.item['sevNew']; return value?value:null; }"

Always check for null/undefined values. If any input is null, arithmetic operations return NaN. Use the pattern return value ? value : null; to convert falsy results to null.

For complex risk-matrix logic, externalize functions to risksheetTopPanel.vm and call them from thin wrappers in formulas. This narrows the validation scope of the sheet configuration in regulated environments. See Top Panel Template.

cellDecorators

Named JavaScript functions that apply conditional CSS classes based on cell values. Each function receives an info object with info.value (cell value), info.item (row data), and info.cell (DOM element). Cell decorators must use toggleClass rather than inline styles, because grid cells are reused as rows scroll. Inline styles persist across reuses and produce stale formatting. RPN thresholds are user-configurable; the example below uses the common 150 / 250 split (green / amber / red). Different deployments use different bands.

cellDecorators:
  rpn: "function(info){ var val = info.value; $(info.cell).toggleClass('boldCol', true); $(info.cell).toggleClass('rpn1', val>0 && val<=150); $(info.cell).toggleClass('rpn2', val>150 && val<=250); $(info.cell).toggleClass('rpn3', val>250); }"
  rowHeaderRpnNew: "function(info){ var val = info.item['rpnNew']; $(info.cell).toggleClass('rpn1', val>0 && val<=150); $(info.cell).toggleClass('rpn2', val>150 && val<=250); $(info.cell).toggleClass('rpn3', val>250); }"

styles

CSS class definitions referenced by cellDecorators. Style values must be wrapped in curly braces {}. Use !important to override grid default styles.

styles:
  ".boldCol": "{font-weight: 600;}"
  ".rpn1": "{background-color: #eaf5e9 !important; color: #1d5f20 !important;}"
  ".rpn2": "{background-color: #fff3d2 !important; color: #735602 !important;}"
  ".rpn3": "{background-color: #f8eae7 !important; color: #ab1c00 !important;}"

Styles can target specific row positions within header groups:

styles:
  ".firstRow .headSysReq": "{background-color: rgba(62, 175, 63, 0.12) !important; color: #2A792D !important;}"
  ".lastRow .headSysReq": "{background-color: #FFF !important; color: #2A792D !important;}"

views

Saved column visibility presets that support staged risk assessment workflows.

Property	Type	Description
`name`	string	Display name in the view switcher.
`columnIds`	array	Column IDs to show in this view.
`defaultView`	boolean	When `true`, this view loads by default (v24.1.0+).

Special tokens inside columnIds:

"@all" — includes every defined column.
"-columnId" — excludes the named column (typically combined with "@all").

views:
  - name: Full Analysis
    defaultView: true
    columnIds:
      - "@all"
  - name: Classification Summary
    columnIds:
      - function
      - failureCondTitle
      - classification
  - name: No Up/Down Risks
    columnIds:
      - "@all"
      - "-upstreamRisks"
      - "-downstreamRisks"

queryFactories

Named Lucene query functions used by typeProperties.queryFactory on itemLink and multiItemLink columns. Each function receives an info object with context data and returns a Lucene query string for filtering autocomplete suggestions.

queryFactories:
  functionQuery: "function(info){ return 'type:function AND document.id:' + info.documentId; }"
  hazardQuery: "function(info){ var sel = $('#classification').val(); if (sel === 'all') return ''; return 'hazardClassification:' + sel; }"

The advanced hazardQuery example reads a user selection from a <select id="classification"> element in the top panel and returns a Lucene filter accordingly. This creates interactive filtering: the user picks a value in the top panel, and autocomplete suggestions update dynamically.

global

Property	Type	Default	Description
`global.culture`	string	`en`	Culture/locale code affecting date formats, number formats, and localization. See Culture and Localization Codes.
`global.help`	string	`https://go.nextedy.com/risksheet-support-portal`	URL opened when users click the Help button.

global:
  culture: de
  help: https://internal.company.example/risksheet-docs

reviews

Property	Type	Default	Description
`reviews.reviewManager`	string	`CommentBased`	Review workflow type. Supported: `CommentBased`, `WorkItemBased`, `ApprovalBased`.

reviews:
  reviewManager: CommentBased

The approval review type creates approval-tagged comments but does not trigger Polarion’s formal approval state transitions (draft to reviewed to approved). Combine with Polarion workflow signatures if formal approval state changes are required.

sortBy

Default sort order as a column ID array.

sortBy:
  - severity
  - rpn

Runtime Properties (Server-Managed)

The following properties may appear in the runtime view of a configuration. They are injected by the server based on the current user, request, and configuration source. They are not user-configurable and must not be set in the configuration file:

canAdmin — indicates administrative privileges for the current user.
reviewer — enables reviewer mode based on the user’s role.
source — path of the configuration source file actually loaded by the server.
templateName — name of the template when configuration was inherited from a template.

Complete Example

global:
  culture: en

columns:
  - id: systemItemId
    bindings: systemItemId
    header: ID
    type: string
    readOnly: true
    level: 1
    width: 80
  - id: title
    bindings: title
    header: Failure Mode
    type: string
    level: 1
    width: 200
  - id: sev
    bindings: severity
    header: S
    type: rating:severityEnum
    level: 1
    width: 50
    headerGroup: Initial Assessment
  - id: occ
    bindings: occurrence
    header: O
    type: rating:occurrenceEnum
    level: 1
    width: 50
    headerGroup: Initial Assessment
  - id: det
    bindings: detection
    header: D
    type: rating:detectionEnum
    level: 1
    width: 50
    headerGroup: Initial Assessment
  - id: rpn
    bindings: rpn
    header: RPN
    formula: commonRpn
    cellRenderer: rpn
    level: 1
    width: 60
    headerGroup: Initial Assessment
    collapseTo: true
  - id: measure
    bindings: measure
    header: Mitigation Task
    type: taskLink
    canCreate: true

levels:
  - name: Item
    controlColumn: systemItemId
    zoomColumn: systemItemId

dataTypes:
  risk:
    type: failureMode
    role: relates_to
    removeStrategy: delete
    rejectedAction: reject
    rejectedStatus: rejected
    rejectedResolution: invalid
  task:
    type: mitigationTask
    role: mitigates
    name: Mitigation
    zoomColumn: measureTitle
    createInDocument: Risks/MitigationTasks

headers:
  rowHeader:
    renderer: rowHeaderRpnNew
  columnHeader:
    height: 32
  columnGroupHeader:
    height: 32

formulas:
  commonRpn: "function(info){ var value = info.item['occ']*info.item['det']*info.item['sev']; return value?value:null; }"

cellDecorators:
  rpn: "function(info){ var val = info.value; $(info.cell).toggleClass('boldCol', true); $(info.cell).toggleClass('rpn1', val>0 && val<=150); $(info.cell).toggleClass('rpn2', val>150 && val<=250); $(info.cell).toggleClass('rpn3', val>250); }"
  rowHeaderRpnNew: "function(info){ var val = info.item['rpnNew']; $(info.cell).toggleClass('rpn1', val>0 && val<=150); $(info.cell).toggleClass('rpn2', val>150 && val<=250); $(info.cell).toggleClass('rpn3', val>250); }"

styles:
  ".boldCol": "{font-weight: 600;}"
  ".rpn1": "{background-color: #eaf5e9 !important; color: #1d5f20 !important;}"
  ".rpn2": "{background-color: #fff3d2 !important; color: #735602 !important;}"
  ".rpn3": "{background-color: #f8eae7 !important; color: #ab1c00 !important;}"

reviews:
  reviewManager: CommentBased

views:
  - name: Full FMEA
    defaultView: true
    columnIds:
      - "@all"
  - name: Risk Summary
    columnIds:
      - systemItemId
      - title
      - rpn

sortBy:
  - rpn

In this example, the severity / occurrence / detection rating scales are defined as Polarion enumerations (e.g., severityEnum) under Administration > Enumerations. The custom fields severity, occurrence, and detection on the failureMode work item type bind to those enumerations; the columns reference them via type: rating:<enumId> and bindings: <fieldId>.

​File Location

​Top-Level Structure

​Top-Level Properties

​columns

​Column Properties

​typeProperties for itemLink Columns

​Column Example

​levels

​dataTypes

​dataTypes.risk Properties

​dataTypes.task Properties

​dataTypes Example

​Dynamic Type Resolution

​headers

​formulas

​cellDecorators

​styles

​views

​queryFactories

​global

​reviews

​sortBy

​Runtime Properties (Server-Managed)

​Complete Example

​See Also

File Location

Top-Level Structure

Top-Level Properties

columns

Column Properties

typeProperties for itemLink Columns

Column Example

levels

dataTypes

dataTypes.risk Properties

dataTypes.task Properties

dataTypes Example

Dynamic Type Resolution

headers

formulas

cellDecorators

styles

views

queryFactories

global

reviews

sortBy

Runtime Properties (Server-Managed)

Complete Example

See Also
