Create an Entity Type - Nextedy Documentation

Prerequisites

Access to your project’s data model YAML file via Administration > Nextedy Powersheet > Data Models or through Menu > Configuration > Edit Data Model within a powersheet document
The Polarion work item type you want to map to must already exist in your project configuration

Open the Data Model

Open your powersheet document
Go to Menu > Configuration > Edit Data Model
Locate the domainModelTypes section in the YAML editor

If this is a new data model, the domainModelTypes section may be empty or contain only a placeholder. You will add your entity types as keys under this section.

Add the Entity Type Definition

Add a new key under domainModelTypes. The key becomes the entity type name used throughout Powersheet for relationships, source queries, and column bindings.

domainModelTypes:
  UserNeed:
    polarionType: user_need
    properties:
      description:
      severity:

PascalCase (e.g., UserNeed, SystemRequirement) is the recommended naming convention for entity type names but is not enforced by the system. Type names must be single words without spaces or special characters. SystemRequirement is valid; System Requirement is not. Invalid names cause silent errors during model loading.

Entity Type Fields

Field	Required	Description
`polarionType`	Recommended	Maps to one or more Polarion work item type IDs. If omitted, the entity type name is used as-is. Accepts a single string or a list of strings.
`properties`	Yes	Map of property names to expose. Use `null` values (empty after the colon) for default configuration.
`constraints`	No	Optional filtering constraints that scope which Polarion items this entity type includes.

The entity type name (e.g., UserNeed) is the Powersheet-internal identifier used in relationships, queries, and column binding paths. The polarionType value (e.g., user_need) is the Polarion work item type ID used for server queries. These can and often do differ. A common mistake is using the Polarion display name instead of the type ID.

Define Properties

List the Polarion work item fields you want to expose on this entity type. Each key in properties must match a built-in field name or custom field name in Polarion.

SystemRequirement:
  polarionType: sys_req
  properties:
    description:
    severity:
    component:
    type:
    status:

Common built-in properties:

Property Name	Description
`title`	Work item title (automatically included even if not listed)
`description`	Work item description (rich text)
`severity`	Severity enum field
`status`	Workflow status
`component`	Component assignment
`type`	Work item sub-type

Properties with a null value (empty after the colon) use default configuration. For advanced property configuration including custom field mappings and enum values, see Add a Custom Property.

Begin with only the properties you need to display in your sheet. You can add more properties later without breaking existing configurations. Starting with a simple single-entity setup makes it easier to diagnose errors during initial setup.

Add Built-in Types (If Needed)

The data model supports the Document built-in entity type that does not require a polarionType mapping:

domainModelTypes:
  Document:

  UserNeed:
    polarionType: user_need
    properties:
      description:

Document — represents Polarion LiveDoc modules. Automatically includes module-level properties.

Other structural types such as headings may need explicit polarionType mapping (e.g., Chapter with polarionType: heading). Check your project’s work item type configuration to confirm which types are available.

Map Multiple Polarion Types (Optional)

An entity type can map to more than one Polarion work item type by providing a list:

DesignOutput:
  polarionType:
    - design_output
    - design_verification
  properties:
    description:
    severity:

This is useful when a single domain concept spans multiple Polarion types and you want to query them together in one sheet source.

Save and Verify

Save the data model YAML
Reload the powersheet document
You should now see the new entity type available in source queries and relationship configurations

To verify the entity type is loaded correctly, use the Model Helper widget:

Set model to your model name
Set startEntity to your new entity type name
Set depth to 1

The Model Helper displays the entity type with its properties and any configured relationships.

The sources.model property in your sheet configuration must match the name of your custom data model, not the default rtm. If the model name does not match, Powersheet silently falls back to the default model and your entity types will not appear.

Complete Example: RTM Entity Types

A typical requirements traceability matrix uses several entity types connected through relationships:

domainModelTypes:
  Chapter:
    polarionType: heading

  UserNeed:
    polarionType: user_need
    properties:
      description:
      severity:
      component:

  SystemRequirement:
    polarionType: sys_req
    properties:
      description:
      severity:
      component:

  DesignRequirement:
    polarionType: des_req
    properties:
      description:

relationships:
  - from: UserNeed
    to: Chapter
    cardinality: many-to-one
    storage: linkedWorkItems
    linkRole: parent
    direct:
      name: chapter
    back:
      name: userNeeds

  - from: SystemRequirement
    to: UserNeed
    cardinality: many-to-many
    storage: linkedWorkItems
    linkRole: decomposes
    direct:
      name: userNeeds
    back:
      name: systemRequirements

After defining entity types, the relationships section connects them using from/to references, direct/back navigation property names, and a Polarion linkRole. See Configure a Relationship for the full walkthrough.

Any relationships entry that references an entity type by name in from or to fields must use the exact type name including capitalization. A mismatch causes a “left error” (invalid from entity) or “right error” (invalid to entity) during model loading.

Verification Checklist

After saving your data model, confirm the following:

Check	Expected Result
Model Helper shows entity type	Type appears with listed properties
Sheet source query works	`query: { from: YourType }` returns Polarion work items
Columns display data	Properties defined in the entity type can be used as column binding paths
No console errors	Browser console shows no metadata loading errors

You should now see your new entity type available in the Model Helper, ready for use in source queries and sheet column configurations.

Map Multiple Polarion Types to One Entity

When several Polarion work item types share the same structure, map them all to a single data model entity type using an array:

domainModelTypes:
  Requirement:
    polarionType:
      - systemRequirement
      - softwareRequirement
      - hardwareRequirement
    properties:
      description:
      severity:

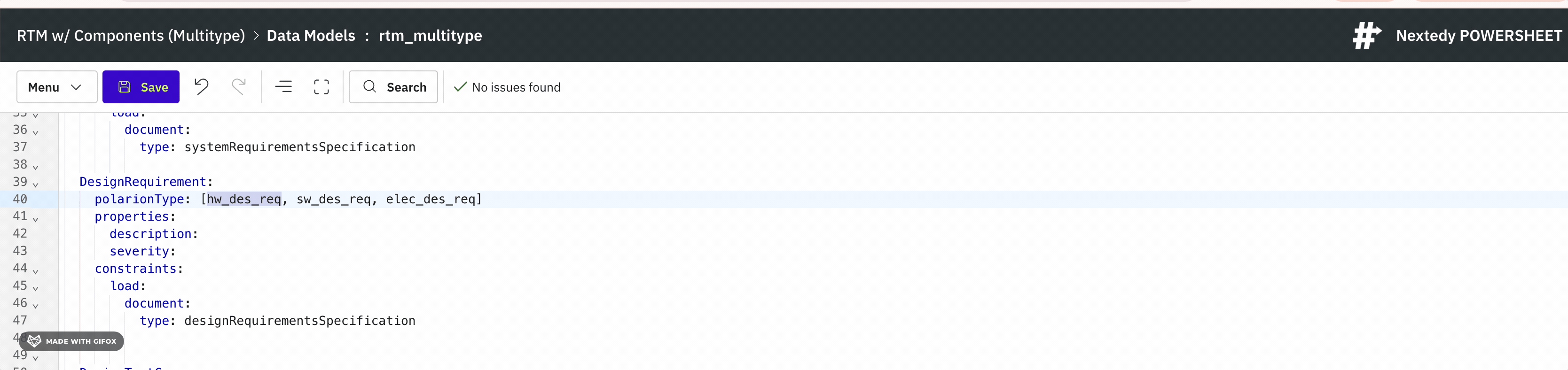

Data model YAML editor showing the DesignRequirement entity type with polarionType set to an array of three Polarion type IDs (hw_des_req, sw_des_req, elec_des_req) plus its properties and constraints

Powersheet queries for the Requirement entity type return work items of all three Polarion types. This is useful for consolidated views where you want to display different requirement subtypes in a single sheet level.

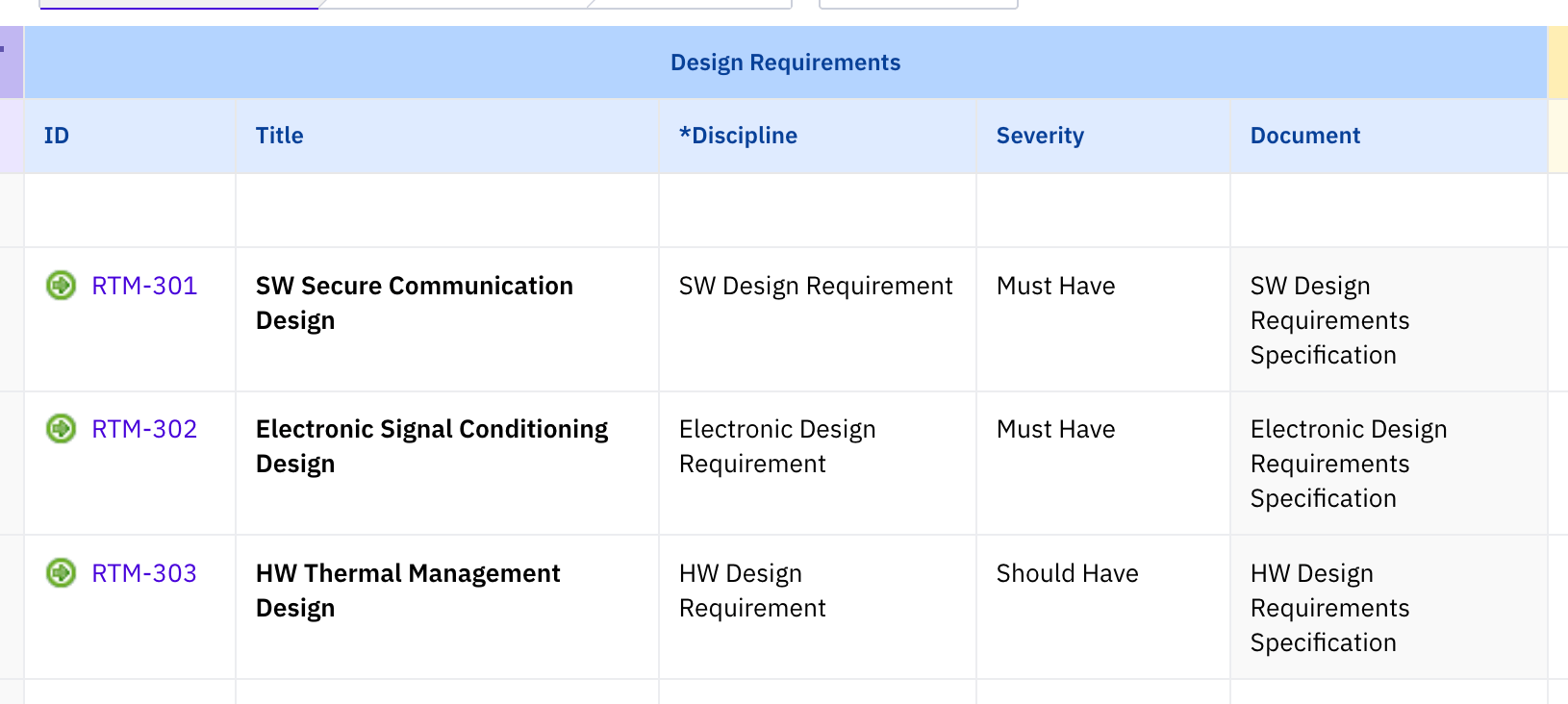

Design Requirements sheet showing three rows (RTM-301, RTM-302, RTM-303) of different Polarion types - SW, Electronic, and HW Design Requirement - displayed together in a single sheet level with a *Discipline column distinguishing each type

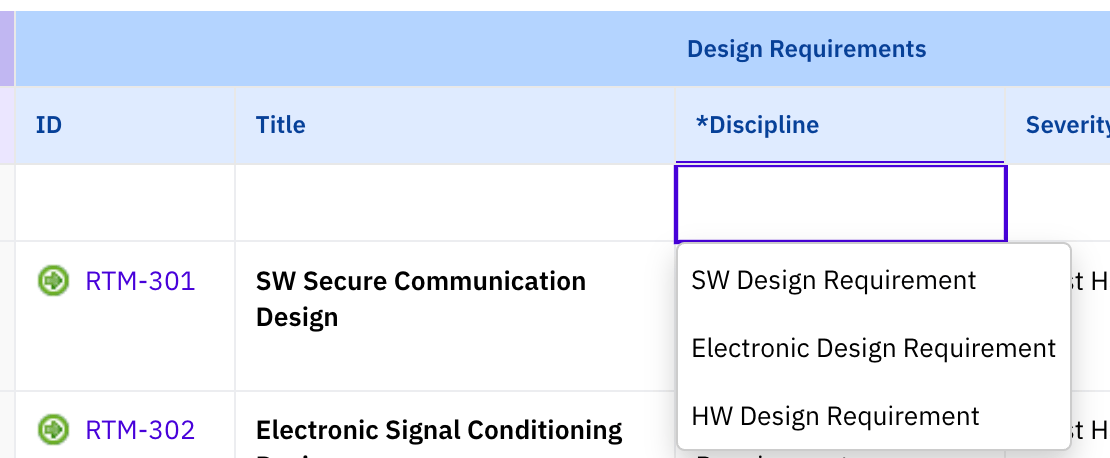

Discipline column dropdown picker open on a Design Requirements row showing the three selectable Polarion subtypes - SW Design Requirement, Electronic Design Requirement, HW Design Requirement - that determine which type is created for the row

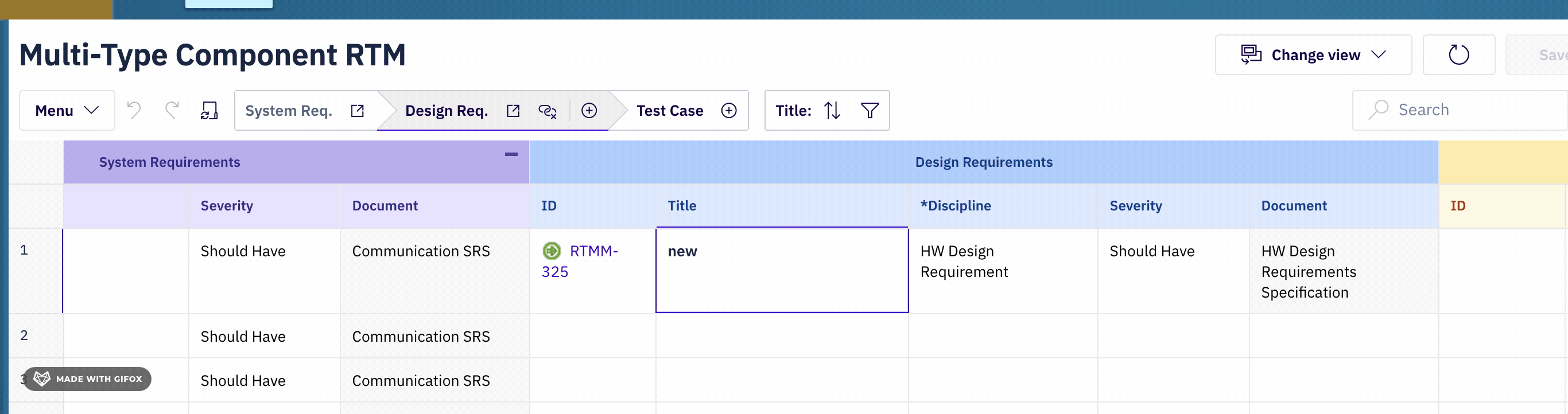

Multi-Type Component RTM sheet with a new Design Requirements row being created - the user enters a title and picks HW Design Requirement from the *Discipline column to set the underlying Polarion type

Use array-style polarionType when the Polarion types share the same custom fields and you want to view them together. If they have different properties, create separate entity types instead so you can define distinct property sets for each.

Map Relationship Link Roles

Relationships between entity types use the linkRole property to reference a Polarion link role. The link role must already exist in your Polarion project configuration under Administration > Work Items > Link Roles.

relationships:
  - from: UserNeed
    to: Chapter
    cardinality: many-to-one
    storage: linkedWorkItems
    linkRole: parent
    direct:
      name: chapter
    back:
      name: userNeeds

  - from: SystemRequirement
    to: UserNeed
    cardinality: many-to-many
    storage: linkedWorkItems
    linkRole: decomposes
    direct:
      name: userNeeds
    back:
      name: systemRequirements

Key properties in each relationship definition:

Property	Purpose
`from` / `to`	Source and target entity type names (must match keys in `domainModelTypes`)
`cardinality`	`many-to-one`, `one-to-many`, or `many-to-many`
`storage`	`linkedWorkItems` — the only supported storage mechanism (Polarion native links)
`linkRole`	Polarion link role ID used to persist the relationship
`direct.name`	Forward navigation property name (source to target)
`back.name`	Reverse navigation property name (target back to source)

If the linkRole value does not match a link role defined in your Polarion project, Powersheet fails to load related items. Verify available link roles under Administration > Work Items > Link Roles before configuring relationships.

Connect Mappings to Sheet Sources and Columns

After mapping entity types and relationships, wire them into a sheet configuration. The three configuration layers — data model, sheet sources, and sheet columns — connect through navigation property names. Source configuration uses the navigation property names from direct.name and back.name to expand related entities:

sources:
  - id: user_needs
    query:
      from: UserNeed
    expand:
      - name: chapter

Column configuration uses the same navigation property names for binding paths:

columns:
  title:
    title: Title
    hasFocus: true
  chapter:
    title: Chapter
    display: title
    list:
      search:
        - title
  chapter.title:
    title: Chapter Title
    isReadOnly: true

The cardinality of the relationship determines how columns behave:

Cardinality	Source expand	Column binding	UI behavior
N:1 (many-to-one)	`- name: chapter`	`chapter`, `chapter.title`	Single-value reference picker
1:N (one-to-many)	`- name: userNeeds`	`userNeeds`	Child rows (new sheet level)
M:N (many-to-many)	`- name: systemRequirements` then `- name: systemRequirement`	`systemRequirements.systemRequirement`	Multi-item reference picker

When a parent entity links to two different work item types (e.g., design outputs and design verifications both linked to system requirements), declare the second linked column with multiItem: true in the sheet configuration. Without this flag, only the first linked type displays correctly.
