What you will achieve

By the end of this tutorial you will have:

A working sheet configuration with columns for UserNeed and related SystemRequirement entities
A data source that queries and expands the entity hierarchy from your data model
A complete configuration ready to be linked to a Nextedy Powersheet document

Prerequisites

Powersheet installed and licensed (see Installing Powersheet)
A data model created with at least UserNeed and SystemRequirement entity types (see Creating Your First Data Model)
Navigation topic enabled (see Setting Up Navigation)

Open the sheet configuration administration

Navigate to Administration > Nextedy Powersheet > Sheet Configurations.

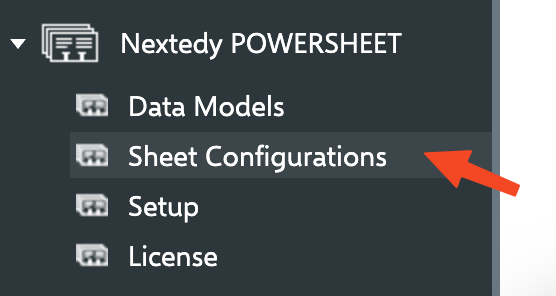

Polarion administration sidebar showing the Nextedy Powersheet section with Sheet Configurations highlighted

Sheet Configurations are organized into a Global section (applied across all projects) and a project-level section (specific to the current project). You can create new configurations in either scope.

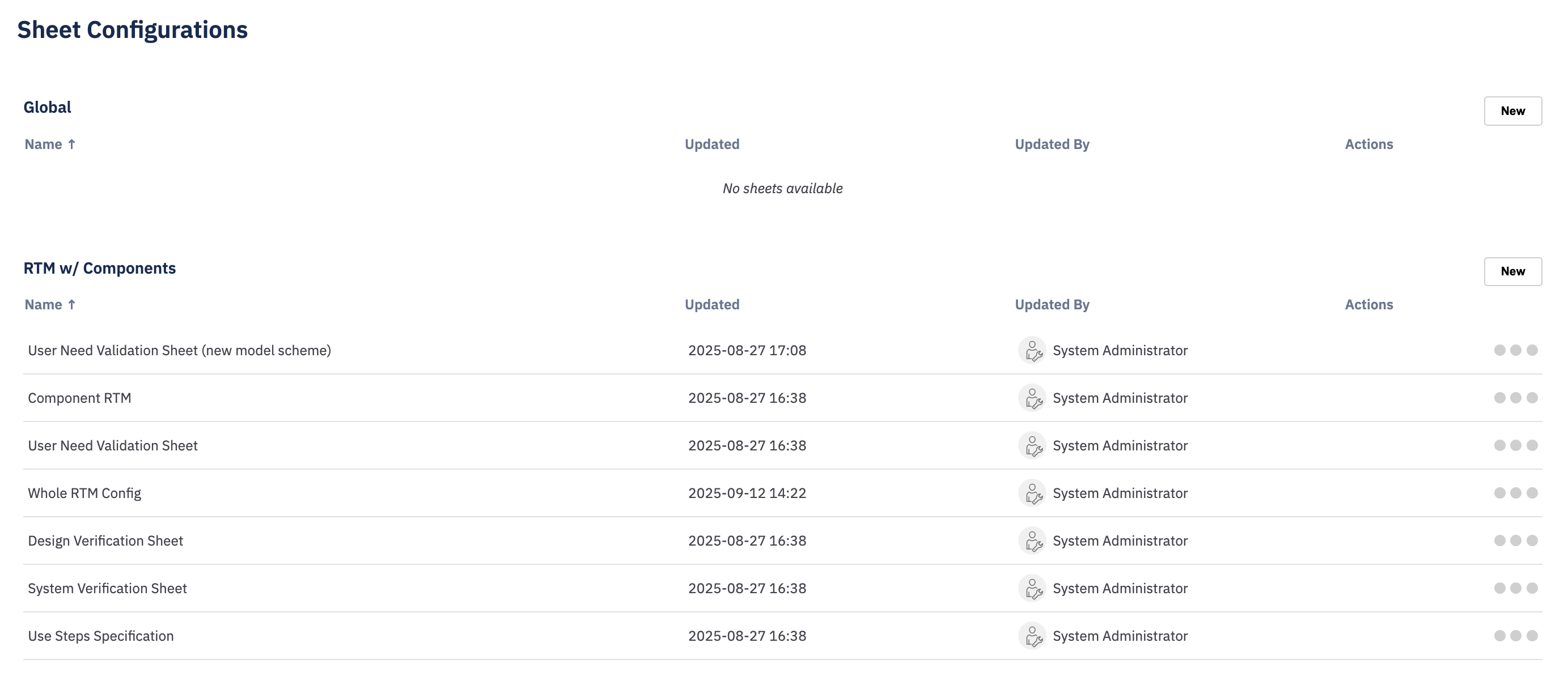

Sheet Configurations administration page showing Global and project-level sections with a list of existing configurations and their last-updated metadata

Create a new sheet configuration. (figure 3)

Click New at the project level. Select System Default as the base and give your configuration a name (e.g., rtm-sheet).

The screenshot above shows a different example name (my new powersheet config). This tutorial uses rtm-sheet throughout — including when linking the configuration to a document in Step 5 — so use rtm-sheet (or your own chosen name) consistently wherever the tutorial refers to it.

You should see: A new sheet configuration file opens in the editor with default template content. The configuration editor opens in a separate browser tab, so your Polarion Administration view stays open behind it.

The System Default base ships with a substantial starting template (roughly 270 lines of commented examples covering columns, views, formatters, and styles). In Step 2 this tutorial has you replace it to keep the example minimal and focused. For a real project, prefer to extend the supplied template — or copy it aside before editing — so you keep the worked examples and inline documentation as a reference instead of throwing them away.

Sheet configuration files use YAML syntax. Indentation must use spaces (not tabs), and each nesting level uses two spaces. Most configuration errors come from incorrect indentation. For a complete introduction to YAML syntax, see the YAML Primer.

Define columns

Replace the editor content with the following YAML. This defines columns for the root UserNeed entity and nested columns for related SystemRequirement entities:

columns:
  title:
    title: User Need
    width: 250
    hasFocus: true
  severity:
    title: Severity
    width: 120
  systemRequirements.systemRequirement.title:
    title: System Requirement
    width: 200
  systemRequirements.systemRequirement.severity:
    title: SR Severity
    width: 120

Each key under columns is a binding path that references properties from your data model. A simple key like title refers to a property on the root entity type. A dot-separated path navigates through relationships defined in the data model:

Path segment	Meaning
`systemRequirements`	The `direct` navigation property from your data model relationship
`systemRequirement`	The target entity type name
`title`	The property to display from the target entity

You should see: Four column definitions in the YAML editor.

The configuration editor auto-indents on every Enter, and the indentation accumulates with each new line. If you type multi-line YAML by hand, the leading spaces compound and the structure quickly breaks (deeper-and-deeper indentation that no longer reflects the real nesting). Instead, paste the whole block at once — for example by copying the YAML above with the copy button on the code block — and verify the indentation matches what is shown here. If you do edit by hand, watch the leading spaces on each line rather than trusting the editor to indent for you.

The title property sets the column header text. Without it, the header defaults to the binding path (e.g., 0.systemRequirements.systemRequirement.title), which is not user-friendly. Always set an explicit title for clarity.

Define the data source

Add a sources section below the columns. This tells Powersheet which data model to use, which entity type to query, and which relationships to expand when loading data:

sources:
  - id: requirements
    model: rtm
    query:
      from: UserNeed
    expand:
      - name: systemRequirements
        expand:
          - name: systemRequirement

The source configuration has three required parts (plus optional expansion):

id (required) — a unique identifier you choose for this data source. You can name it anything meaningful
model (required) — the name of the data model to use, which must match the data model file name (without the .yaml extension). The rtm value here assumes you named your model rtm; use whatever name you actually gave the model when you created it in Creating Your First Data Model. For example, model: rtm references the rtm.yaml data model file, while a model named traceability would require model: traceability
query.from (required) — the root entity type name, matching a key in domainModelTypes from your data model
expand (optional) — which relationships to follow when loading data. Each name corresponds to a navigation property from your data model. Expansion can be nested to follow multi-level relationships

You should see: The complete configuration now has both columns and sources sections.

Built-in properties like id and title do not need to be explicitly defined in your sources or data model to be queried; they are implicitly available. However, you must explicitly list them in your columns section if you want them to appear in the sheet.

The query.from value must exactly match a domainModelTypes key from your data model. If you defined UserNeed in the data model, you must use UserNeed here — not userneed or user_need. The match is case-sensitive.

Review the complete configuration

Your complete sheet configuration should look like this:

columns:
  title:
    title: User Need
    width: 250
    hasFocus: true
  severity:
    title: Severity
    width: 120
  systemRequirements.systemRequirement.title:
    title: System Requirement
    width: 200
  systemRequirements.systemRequirement.severity:
    title: SR Severity
    width: 120

sources:
  - id: requirements
    model: rtm
    query:
      from: UserNeed
    expand:
      - name: systemRequirements
        expand:
          - name: systemRequirement

Save the configuration file.You should see: The editor accepts the YAML without errors. The configuration is now stored in your project repository.

Link the configuration to a document

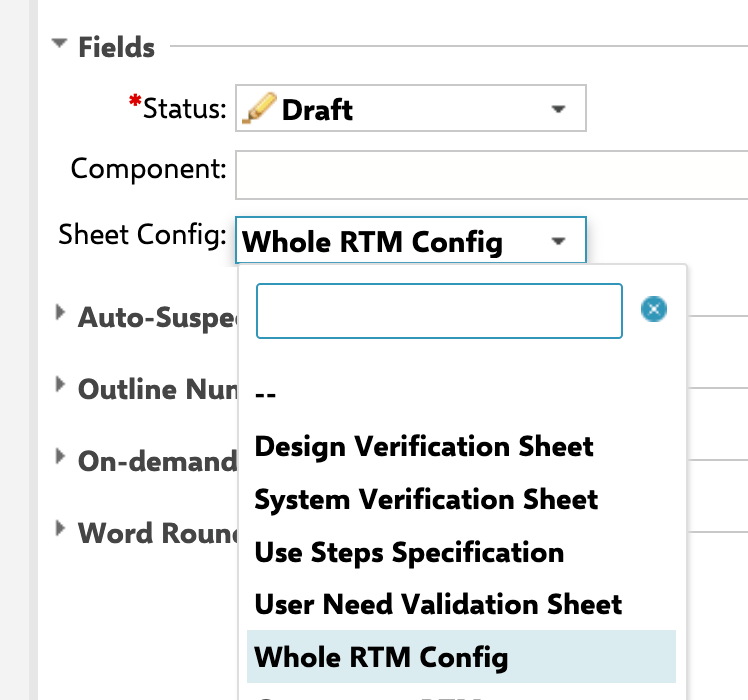

Select the corresponding configuration in the Document Properties (figure 7)

To see your sheet in action, link this configuration to a Powersheet document. Open (or create) a Powersheet document in your project and open its Properties sidebar. There you will find the sheet configuration custom field — field ID nextedySheetConfig, labelled Sheet Config in the UI. Use its dropdown to select the configuration you just created (rtm-sheet), as shown above.

The nextedySheetConfig field must be registered on the document type before it appears in Properties. If it is missing, see Installing Powersheet for adding the custom field. If your project uses a different field ID, it must be declared via the com.nextedy.powersheet.sheetConfigFieldId configuration property.

You should see: When you open the document with Powersheet, it renders as a hierarchical sheet with four columns — UserNeed title and severity at the root level, and SystemRequirement title and severity as expandable child rows.

This configuration is intentionally minimal. Once it works, you can add more columns, define views, configure formatters, and introduce additional entity types one property at a time. See Incremental Configuration Approach for the recommended workflow.

Understanding root-level properties

The sheet configuration supports several root-level properties beyond columns and sources. You do not need all of these to start — columns and sources are sufficient for a working sheet:

Property	Purpose
`columns`	Column definitions with binding paths, titles, and display options
`sources`	Data source queries and expansion paths
`views`	Named column visibility presets for switching between analysis perspectives
`formatters`	Conditional formatting rules based on cell or row values
`styles`	Reusable style definitions (colors, text decoration) referenced by formatters
`columnGroups`	Visual grouping of related columns with collapsible headers
`sortBy`	Default client-side sort order by column and direction
`renderers`	Custom rendering functions for specialized cell display
`showGroupRowCounter`	Whether to display item counts on group rows (default: hidden)

Next steps

Incremental Configuration Approach — learn how to extend your configuration step by step
Creating Your First Powersheet Document — create a document and see your sheet in action
Sheet Configuration Reference — full property reference for all sheet configuration options
Columns Reference — detailed reference for column settings like isReadOnly, formatter, and groupBy
Data Model Guides — extend your data model with additional entity types and relationships
