The Problem Powersheet Solves

Polarion ALM stores data as individual work items connected through link roles, but viewing and editing those relationships at scale is cumbersome. Any team managing structured hierarchical data — whether requirements traceability, risk registers, task boards, or custom domain models — faces the same challenge: they need to see the full chain at once, not click through dozens of separate pages. This is especially acute in regulated industries (automotive, aerospace, medical devices) where traceability evidence must be complete and auditable. Powersheet solves this by projecting those multi-level relationships into a single, configurable sheet where every column, row hierarchy, and edit behavior is defined through YAML configuration.

​
Core Architecture

Powersheet separates concerns into three distinct layers. Think of it like a database application: one layer defines the schema, another defines the view, and a third connects it all to documents. diagram

​
1. Domain Model

The domain model is a YAML file that defines what slice of the Polarion data model is visible and editable within Powersheet. It acts as a semantic layer that maps Polarion’s native elements — work item types, link roles, document types — into structured entity types and relationships. Key responsibilities of the domain model:
  • Mapping and normalization — Enables centralized configuration even across projects with slightly different Polarion setups. You can reuse the same sheet configuration while only adjusting the domain model mapping.
  • Process constraints — Defines custom rules not natively enforceable in Polarion, such as link cardinality (for example, a SystemRequirement may link to only one UserNeed in an RTM model) and document rules (an entity must exist in documents of a specific type).
  • Reusability — You can define both global models and project-specific models. Multiple models can exist and be reused across projects.
Domain models are managed in Polarion at Administration > Nextedy POWERSHEET > Data Models. Powersheet ships with ready-to-use models, including RTM traceability models, a risk management model, a task management (Todos) model, and a Salesforce-style CRM model.

​
2. Sheet Configuration

The sheet configuration defines how data from the model is displayed and interacted with. Stored as a YAML file, it specifies:
  • Columns — Which attributes and relationships are visible, which are editable, and how they are formatted
  • Sources — Where to query data and how to expand related entities through expansion paths
  • Views — Named column visibility presets for different analysis perspectives (for example, one view for coverage analysis, another for risk assessment)
A single sheet configuration can be referenced from multiple documents. Each configuration is tied to a domain model, so the column binding paths must match the entity types and relationships defined in the model.

​
3. Document Entry Point

Each powersheet is anchored to a Polarion LiveDoc. There are two patterns:
  • Self-contained — The document is associated with a sheet configuration and visualizes data defined by that configuration.
  • Template-based — The document references a shared sheet configuration that can be reused across many documents.
From the user’s perspective, they open a Polarion document as usual. If a sheet configuration is assigned, they see the powersheet view and can begin editing, creating, and linking work items directly in the sheet.

​
Powersheet Drive

Powersheet introduces Powersheet Drive, a dedicated topic in the Polarion sidebar that serves as a navigator for all configured powersheet documents. By default, it lists all documents with an assigned sheet configuration, providing a central entry point into structured traceability and planning views.
The Powersheet Drive topic must be enabled in Polarion’s topic configuration before it appears in the sidebar. See Setting Up Navigation for instructions.

​
How Configuration Layers Work Together

The separation between domain model and sheet configuration is intentional. Consider a scenario where two projects use different Polarion work item type IDs for the same logical concept — one uses sys_req and the other uses system_requirement. With Powersheet, you create two domain models (each mapping to their project’s type IDs) but share a single sheet configuration. The sheet configuration refers to the logical entity type (for example, SystemRequirement from the RTM model), and the domain model handles the mapping to the actual Polarion type. This architecture supports standards compliance for ISO 15288, Automotive SPICE, and ISO 26262 by keeping the process-level configuration (domain model) separate from the presentation-level configuration (sheet configuration).

​

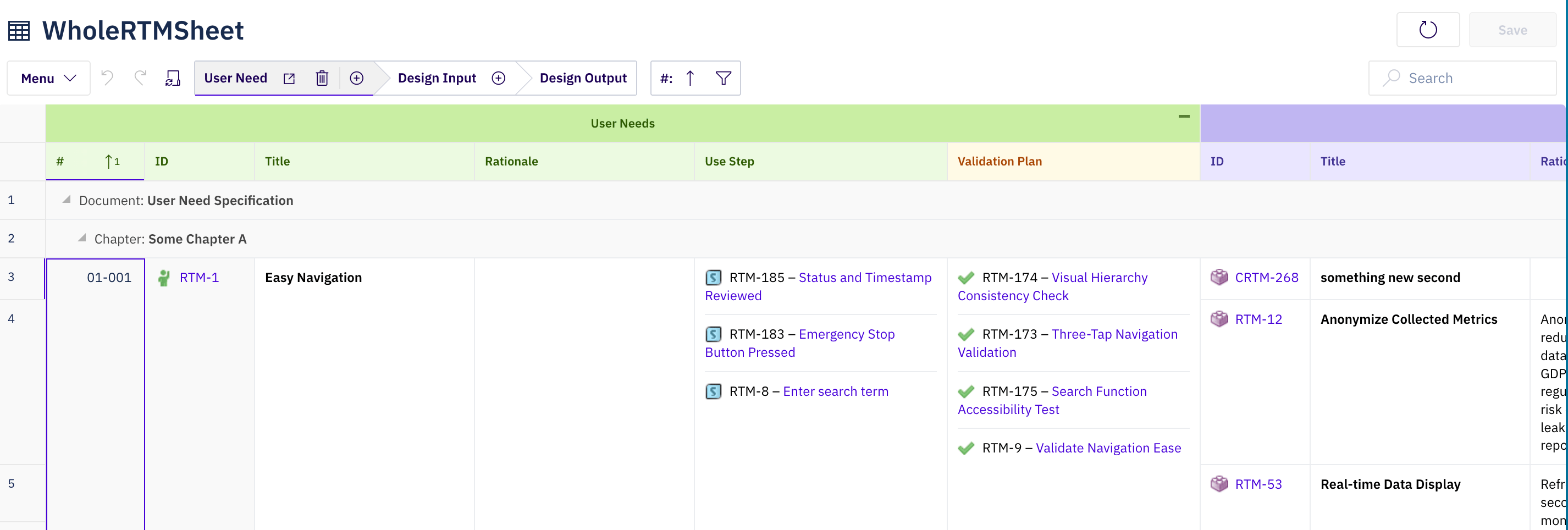

What You Can Do in a Powersheet

Once configured, end users can:
  • View hierarchical data with expandable rows showing related entities
  • Edit work item properties inline with type-aware editors
  • Create new work items and links directly in the sheet
  • Filter and sort across all columns, including related entity properties
  • Group rows by column values with collapsible group headers
  • Switch between named views for different analysis perspectives
  • Copy and paste cell ranges within the sheet
  • Use keyboard shortcuts for common operations
Support experience shows that starting with a minimal single-entity configuration and extending incrementally is the most reliable approach. See Incremental Configuration Approach for guidance.

​
