Enumeration Properties - Nextedy Documentation

Nextedy GANTT adds enumerations that a Polarion custom field of type Enum can draw its options from. The properties below configure two of them. Set them in Administration > Configuration Properties of the project whose custom fields use the enumeration.

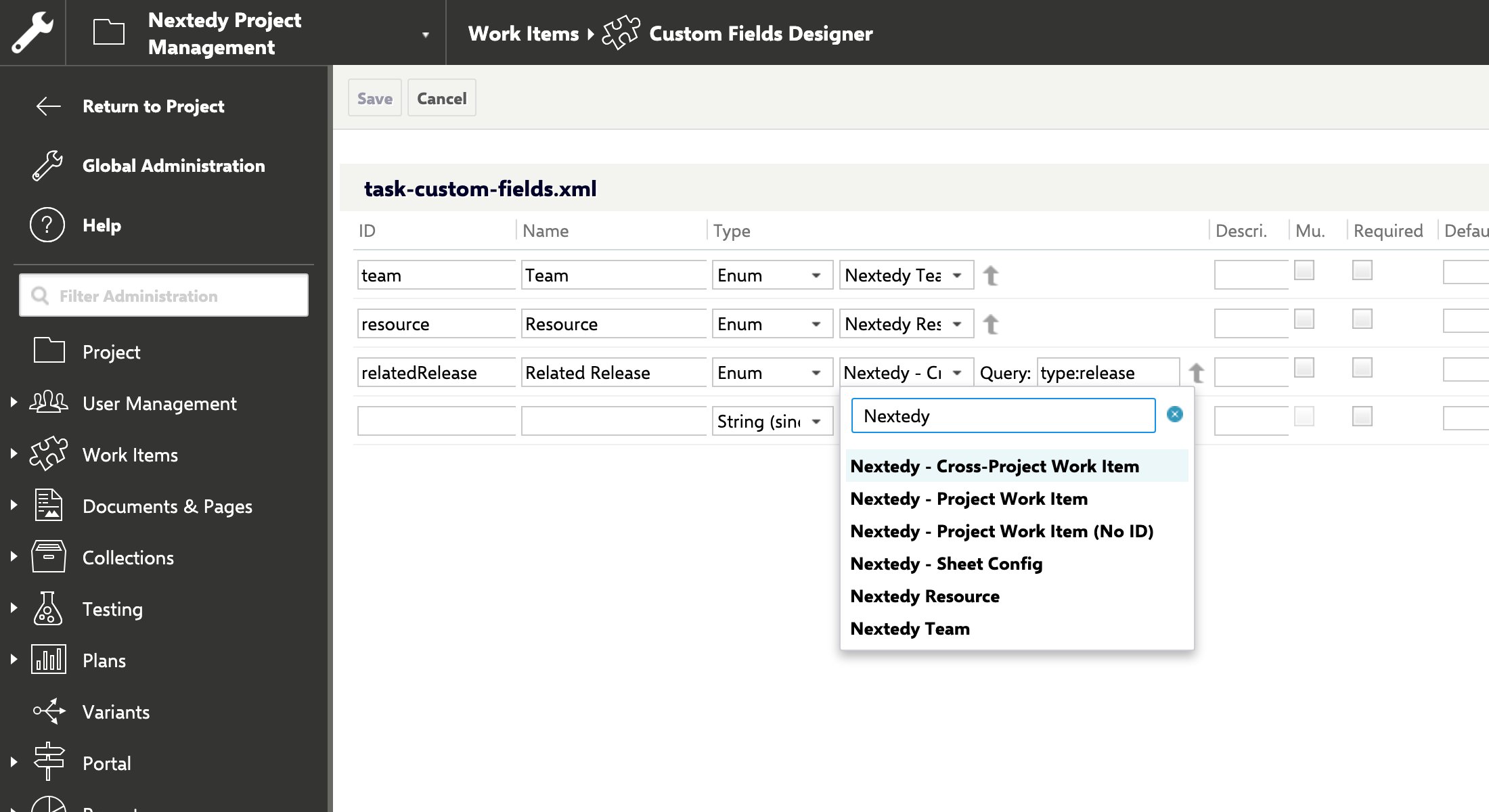

The enumeration list of a custom field filtered on Nextedy, showing Nextedy - Cross-Project Work Item, Nextedy Resource and Nextedy Team among the enumerations Gantt adds

Every property on this page is available since version 26.10.0.

Nextedy Resource Enumeration

The Nextedy Resource enumeration offers resource work items as options, each labelled by its title. It takes no query on the field itself — every field using it offers the pool these properties define. Setting it up is covered in Offer Resources in a Custom Field.

Name	Type	Default	Description
`nextedy.gantt.resourceEnum.query`	`String`	`type:resource`	The complete Lucene query selecting the work items the enumeration offers. Used exactly as written: what a resource is and which project holds the resources are both said here. With no project clause, matching work items from every project are offered. A blank value falls back to the default.
`nextedy.gantt.resourceEnum.idField`	`String`	`id`	String field of the resource work item whose value is stored on the work item as the selected option, so the stored identifier can differ from the work item ID. Every resource needs a value in it, unique among the resources the query returns.

Options are sorted by project ID, then by title. The list is never truncated — see Large Resource Pools.

idField Is Read in Two ProjectsThe value stored for a resource is taken from the idField of the project holding that resource; a stored value is looked up again through the idField of the project carrying the field. Where the resources live in another project, set the property to the same value in both. Values stored before idField changes keep the old identifier and no longer resolve.

Cross-Project Work Item Enumeration

The Nextedy - Cross-Project Work Item enumeration offers work items from every project, narrowed by the query entered on the field that uses it. With no query on the field, every work item in the repository except headings is offered.

Name	Type	Default	Description
`nextedy.gantt.crossProjectWorkItemEnum.enabled`	`Boolean`	`true`	Set to `false` to switch the enumeration off: fields using it then offer no items beyond a value the work item already carries, and the repository-wide listing query no longer runs. Unset, or `true` in any letter case, keeps it on; any other value switches it off.

Switching the enumeration off does not clear values already set: a work item that carries one keeps it, and its field still shows it.

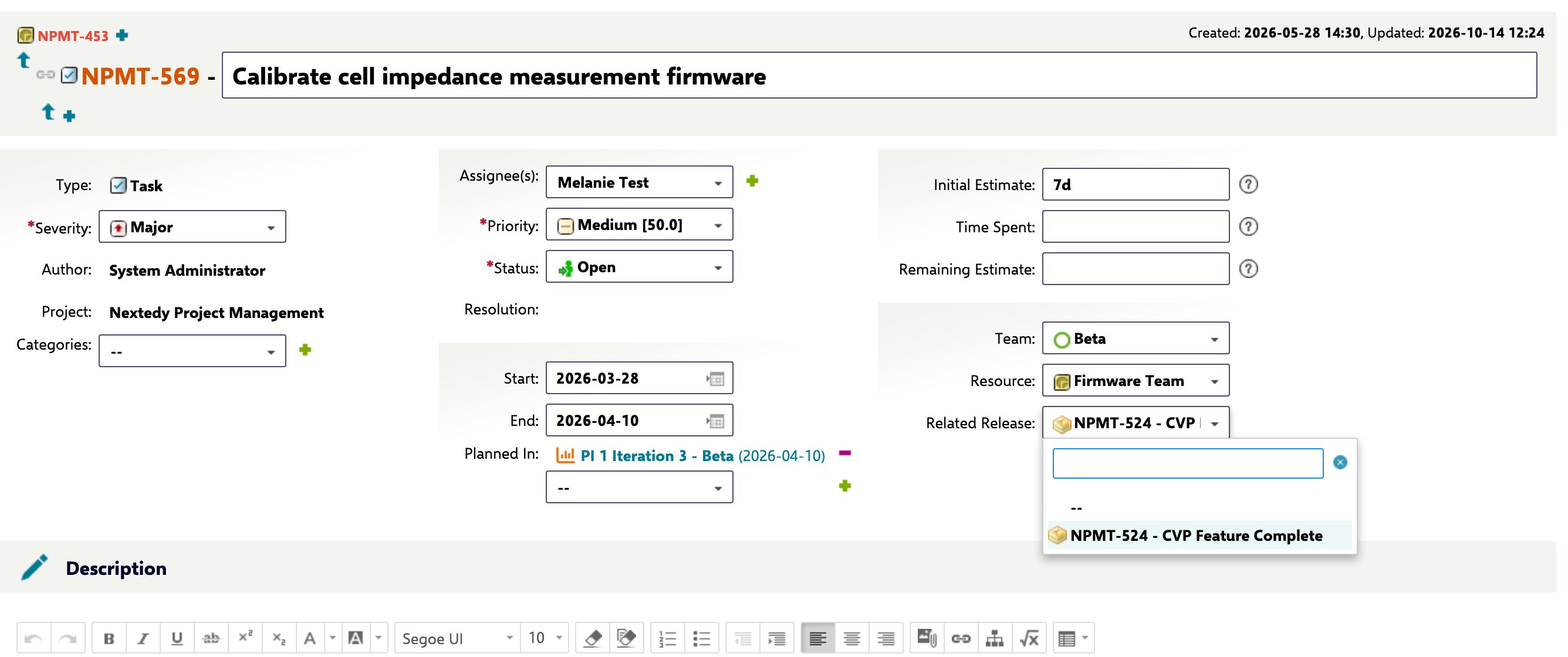

A Related Release field using the switched-off cross-project enumeration, offering only the release the task already carries

Configuration Example

Resources held in their own project and identified by a resource code, with the cross-project work item enumeration switched off:

nextedy.gantt.resourceEnum.query=type:resource AND project.id:ResourceBreakdown
nextedy.gantt.resourceEnum.idField=resourceCode
nextedy.gantt.crossProjectWorkItemEnum.enabled=false

Offer Resources in a Custom Field — set the Nextedy Resource enumeration up
Resource Breakdown Structure — the enumeration next to the hierarchical picker
Resource Hierarchy and Identity Properties — the properties of the hierarchical picker
Team and Resource Properties — the Team and Team Assignment work item types
