Progress Data Model

The Gantt chart stores progress as a float value between 0.0 (no progress) and 1.0 (complete). The progress column in the grid displays this as a percentage (0-100). The default Progress Field widget parameter is gantt_progress. diagram

​
Calculate Progress from Time Estimates

This script computes progress as timeSpent / (remainingEstimate + timeSpent) and automatically sets resolved items to 100%. In Widget Parameters > Advanced > Item Script:
if(wi.getType().getId() === 'workpackage'){
    var all = (wi.getRemainingEstimate() != null
                   ? wi.getRemainingEstimate().getHours() : 0)
            + (wi.getTimeSpent() != null
                   ? wi.getTimeSpent().getHours() : 0);
    var done = (wi.getTimeSpent() != null
                   ? wi.getTimeSpent().getHours() : 0);

    if(wi.getResolution() != null){
        task.progress = 1;
    } else if(all == 0){
        task.progress = 0;
    } else {
        task.progress = done / all;
    }

    var progressString = (wi.getTimeSpent() != null ? wi.getTimeSpent() : "0h")
        + " | "
        + (wi.getRemainingEstimate() != null ? wi.getRemainingEstimate() : "0h")
        + " (" + Math.round(task.progress * 100) + " %)";
    task.getFields().put("progressString", progressString);
}
The script above filters for workpackage items. Change 'workpackage' to your work item type ID, or remove the if statement entirely to apply the calculation to all items.

​
Disable Progress Drag

When progress is computed automatically, disable manual progress adjustment. In Widget Parameters > Advanced > Gantt Config Script:
gantt.config.drag_progress = false;
This hides the progress drag handle on task bars and prevents users from overriding calculated values.

​

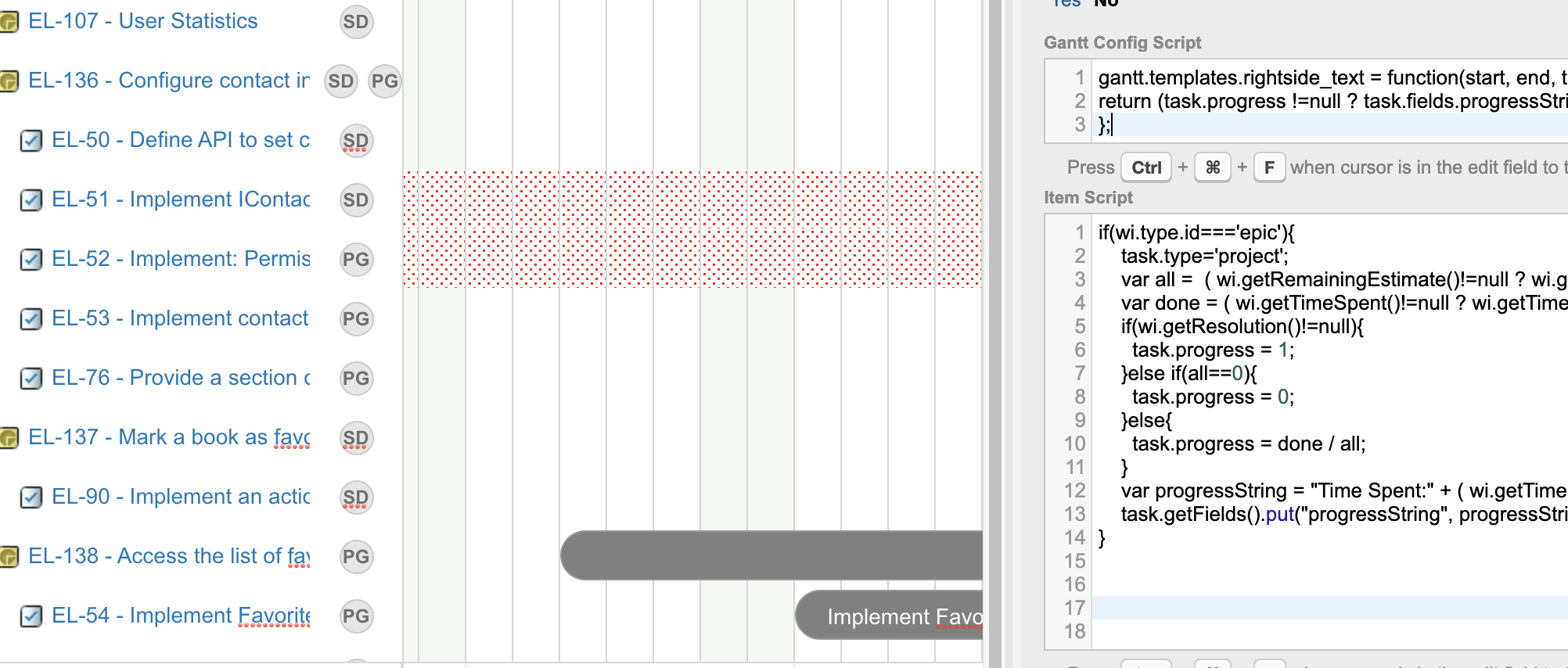

Display Progress Text on Task Bars

Show the computed progress summary next to each task bar. In Gantt Config Script:
gantt.config.drag_progress = false;
gantt.templates.rightside_text = function(start, end, task){
    return "<b><img src='" + task.fields.statusIcon + "'/> "
        + task.fields.statusName + "</b> "
        + (task.progress != null ? task.fields.progressString : "");
};
This renders the work item status icon, status name, time spent, remaining estimate, and completion percentage to the right of each task bar.

​

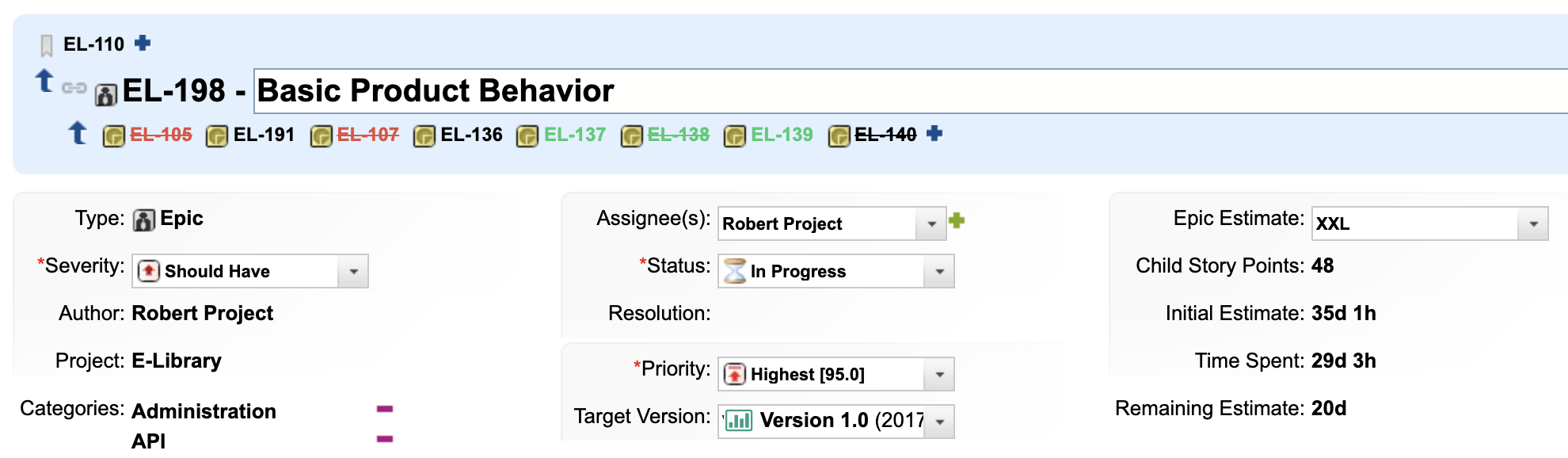

Calculate Epic Progress from Children

For epic-level items where time estimates are derived from child stories:
if(wi.getType().getId() === 'epic'){
    task.type = 'project';
    var all = (wi.getRemainingEstimate() != null
                   ? wi.getRemainingEstimate().getHours() : 0)
            + (wi.getTimeSpent() != null
                   ? wi.getTimeSpent().getHours() : 0);
    var done = (wi.getTimeSpent() != null
                   ? wi.getTimeSpent().getHours() : 0);

    if(wi.getResolution() != null){
        task.progress = 1;
    } else if(all == 0){
        task.progress = 0;
    } else {
        task.progress = done / all;
    }

    var progressString = "Time Spent:"
        + (wi.getTimeSpent() != null ? wi.getTimeSpent() : "0h")
        + " Remaining: "
        + (wi.getRemainingEstimate() != null ? wi.getRemainingEstimate() : "0h")
        + " (" + Math.round(task.progress * 100) + "%)";
    task.getFields().put("progressString", progressString);
}

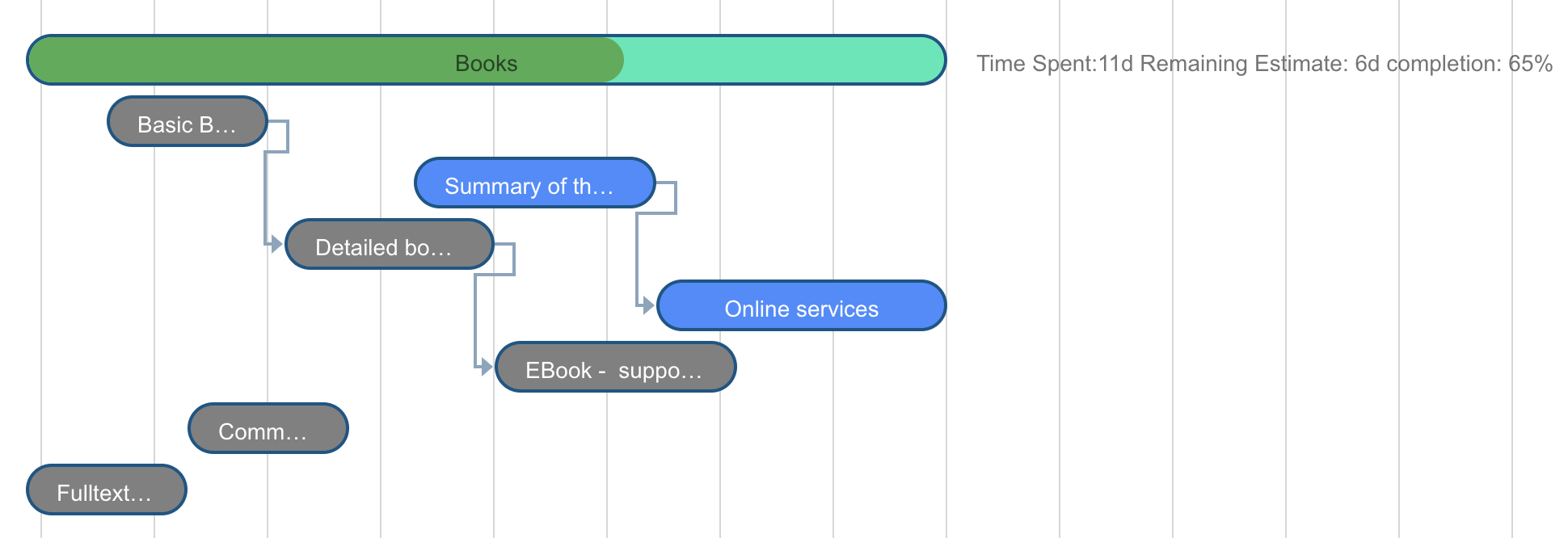

Setting task.type = 'project' renders the epic as a summary bar with its schedule derived from children.

​
Calculate Plan Progress from Resolved Items

For Plans Gantt, compute progress as the ratio of resolved to total work items in a plan. In Item Script:
var allitems = trackerService.queryWorkItems(
    "PLAN:(" + plan.getProjectId() + "/" + plan.getId() + ")", "id").size();
var openitems = trackerService.queryWorkItems(
    "PLAN:(" + plan.getProjectId() + "/" + plan.getId()
    + ") AND HAS_VALUE:resolution", "id").size();
if(allitems > 0){
    task.progress = openitems / allitems;
} else {
    task.progress = 0;
}
task.getFields().put("progressString", openitems + " / " + allitems + " done");
The plan variable is only available in the Plans Gantt Item Script. In the Work Items Gantt, use wi to access work item data instead.

​
Verify Your Changes

Save the page and reload the Gantt chart. You should now see:
  • Task bars with progress fill matching the computed percentages
  • Progress text displayed to the right of each task bar (if configured)
  • The progress drag handle hidden (if drag_progress is disabled)

​
